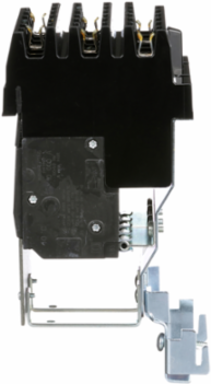

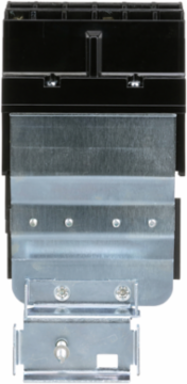

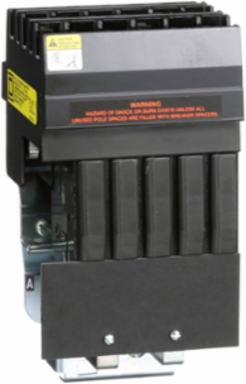

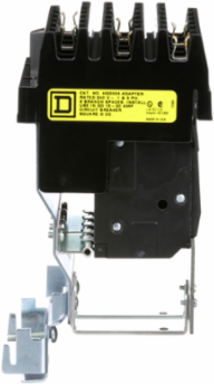

Square D HQO306 QO Distribution Panel, 6 Spaces, 30A, 3 Pole, 25kA
- MPN: HQO306
- UPC: 785901649601
- PPN: SCH-HQO306
CAD
$387.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
I-Line power distribution panelboards are ideal for service entrance equipment or downstream distribution panels in the electrical system of a large commercial or industrial facility. The I-Line power distribution panelboard has a circuit breaker engagement system and is used to feed NQ and NF panelboards. I-Line panelboards are capable of feeding large motor loads and are utilized in most every market segment. This QO distribution panel only mounts in HCM, HCP, HCP-SU or HCR-U I-Line panelboards. This distribution panel is rated at 30 A, 3 pole, 25 kA, and 6 spaces. This panel has a 240 VAC maximum rating. Panel provides 25 kA breaking capacity. It has an ABC phase connection. The panel will accept 14 AWG or 12 AWG copper or aluminum wire.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Complementary Attributes
- Line Rated Current
- 30 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL, CSA
- Local Publishable Date
- 2026-07-14
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2212009
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2446
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- 14 AWG...10 AWG aluminium/copper
- Device Composition
- grounding bar (ordered separately)
- Mounting Mode
- plug-on
- Number Of Spaces
- 6
- Phase Connection
- ABC
- Product Or Component Type
- panel
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ue] Rated Operational Voltage
- 240 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8537109150
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Circuit Breaker TypeQO
Energy Efficiency OptimizedFalse
Number Of Circuits6
Phase3 phase
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductQO
Sustainable PackagingNo
Pep CodeENVPEP2212009EN
Short-circuit Current25 kA
Package Weight(Lbs)1.833 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -5 °C, -5 °C, 40 °C
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI2212009
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2212009EN
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP2212009EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 3 phase
- Range Of Product
- QO
Product Or Component Typepanel
ETIM
- ETIM 8
- EC000214
ETIM 9EC000214
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
