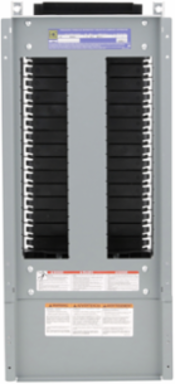

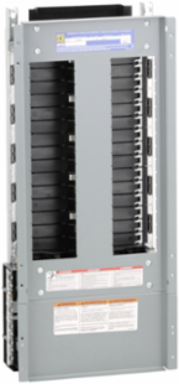

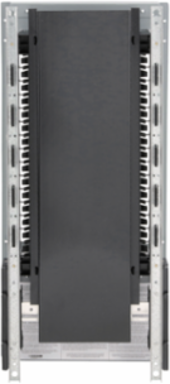

Square D NF430L2C NF Panelboard with Main Lugs, 250A, 30 Pole Spaces, 3 Phase, 4 Wire
- MPN: NF430L2C
- UPC: 785901871484
- PPN: SCH-NF430L2C
- UNSPSC: 39121112
CAD
$1493.94
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
NF Panelboard with Main Lugs, 250A, 30 Pole Spaces, 3 Phase, 4 Wire
Features
- Interior for NF Panelboards
- 3 phase system with 30 pole spaces
- 250A main lugs with copper bus
- Voltage ratings of 600Y/347VAC max
- Interiors are field convertible to top or bottom feed
- Modular construction accepts field installable accessories
- UL Listed and CSA rated
- Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Weight | 9344 g |
|---|
Physical Attributes
| Enclosure Nominal Height | 38 in, 50 in |
|---|
| Enclosure Nominal Width | 20 in |
|---|
Complementary Attributes
| Line Rated Current | 250 A |
|---|---|
| Iu Rated Interrupted Current | 65 kA |
| Ue Rated Operational Voltage | 600Y/347 V AC |
|---|
Important Information Attributes
| Persona Type Ids | EU, EUA, LC, OM, SC |
|---|---|
| Tightening Torque | 4.52-5.65 N.m 13.30-67.43 mm² (6 AWG...2/0 AWG), 11.3-11.3 N.m 13.30-67.43 mm² (6 AWG...2/0 AWG)31.07-31.07 N.m 13.30-177.3 mm² (6 AWG...350 kcmil), 31.07-31.07 N.m 13.30-126.7 mm² (6 AWG...250 kcmil)31.07-31.07 N.m 107.2-152 mm² (4 AWG...300 kcmil) |
| Certificate Agency | CSA C22.2, UL 67 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 23 kg CO2 eq., 22.7869278916 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 137 kg CO2 eq., 137.0138835145 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Circuit Breaker Type | EDB/EDG/EDJ |
| Load Center Type | main lugs |
| Number Of Spaces | 30 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 163 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 10.44 in |
| Customs Code | 8537109150 |
| Functional Unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1422.40 mm x 508.00 mm x 146.05 mm and NEMA 1& 10Followed standard: UL 67 UL 50E and CSA22.2 |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 94 |
| Persona Type Names | End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician |
|---|---|
| Connections Terminals | lug line 6 AWG...350 kcmil aluminium, lug neutral 6 AWG...350 kcmil aluminium |
| Carbon Footprint Of The Distribution Phase A4 | 2.6934286098, 3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.81034357, 0.8 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 0 kg CO2 eq., 0.0254770913 |
| Local Publishable Date | 2026-03-26 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Material | copper |
| Phase | 3 phase 4 wires |
| Returnability | Yes |
| Sustainable Packaging | No |
| Database Version | 2022-01 |
| Height Nominal | 33 in |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 163.3300606772 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-07-15 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2303003EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2303003EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Phase | 3 phase 4 wires |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
