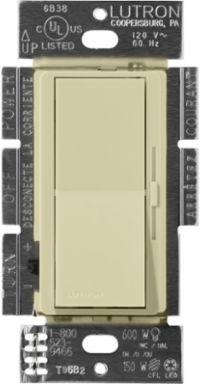

Lutron DVSCTV-SA Diva 0-10V Dimmer Switch, Single-Pole, Sage Finish, 4.69 x 2.94 Inch
- MPN: DVSCTV-SA
- UPC: 784276291279
- PPN: LUT-DVSCTV-SA
- UNSPSC: 39122206
CAD
$104.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Diva 0-10V dimmer switch is a simple solution is designed to match existing design style switches and accessories. Easily turn the lights on and off with a paddle switch, and use the slide control to adjust the lights to the perfect level. The new Diva 0 - 10-Volt dimmer switch is a 0-10 VDC dimmer with 3-way functionality for 3rd party 0-10-Volt fixtures (LED and fluorescent), Power Pack (PP-DV) required. Coordinating wall plate and required Power Pack sold separately.
Features
- Controls 0-10 V LED or fluorescent fixture loads, 30 mA max control current. Paddle turns on/off. Slide up to brighten, down to dim. Power pack required.
- For use in controlling 0-10-Volt LED drivers and/or fluorescent ballasts
- Separate Power Pack (PP-DV) required for dimmer; Power Pack requires Neutral.
- Large paddle switch with a captive linear-slide control for a standard designer-opening wall plate
- Can be used in single pole or 3-way applications
- Easily replaces existing switch and installs in as little as 15 minutes
- Includes (1) Diva 0-10V dimmer switch; coordinating wall plate and required Power Pack (PP-DV) sold separately
- Controls 0-10 V LED or fluorescent fixture loads, 30 mA max control current
- Paddle turns on/off
- Slide up to brighten, down to dim
- Power pack required
- 10 year warranty with product registration
Documentation & Downloads
Specifications
Key Specifications
| Aesthetic Finish | Satin |
|---|---|
| Connection Type | Wire Leads |
| Environmental Conditions | Indoor use only |
| Frequency Rating, Minimum | 50 Hz |
| Operating Temperature, Maximum | 104 F |
| Switch Type | Paddle Switch |
| Face Material | Metal;Plastic |
| Actuator | Paddle switch |
| Connection | Wire Leads |
| Finish | Satin |
| Material | Plastic/Metal |
| Operating Temperature | 32 to 104 F |
| Application | Lighting Control |
|---|---|
| Decorative Color | Sage |
| Family Color | Beige |
| Number of Poles | 1 |
| Operating Temperature, Minimum | 32 F |
| Type | Dimmer, single-pole |
| Frequency Rating | 50 to 60 Hz |
| Color | Sage |
| Enclosure | Plastic |
| Insulation | Plastic |
| Mounting | Wallbox |
| Size | 4.69 x 2.94;119 x 75 in;mm |
