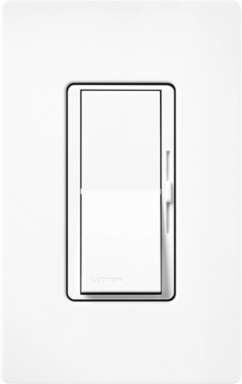

Lutron DVSCCL-253P-BW Diva 250W LED+ Dimmer Switch, Satin Finish, 3-Way/SINGLE-Pole, 120V
- MPN: DVSCCL-253P-BW
- UPC: 784276289238
- PPN: LUT-DVSCCL-253P-BW
- UNSPSC: 39122206
CAD
$84.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Lutron Diva 250W LED+ dimmer switch includes the most advanced technology for superior dimming for up to 250W of dimmable LED, 600W of Incandescent/Halogen, or 350W Lutron Hi-Lume A-Series LTE LED Driver. The Diva LED+ dimmer switch features a large paddle switch to turn the lights ON/OFF and smooth and linear slider to dim or brighten the lights. Set a favorite preset level with the slider before turning on. The Diva 250W LED+ Dimmer switch also features an easy low-end trim adjustment directly on the dimmer, which eliminates complicated programming or having to turn the power off. Available in 20+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Features
- Controls 250 W dimmable LED/CFL (screw-base), 600 W incandescent/halogen or 350 W Hi-Lume 1 percent 2-wire LED driver loads. Paddle turns on/off. Slide up to brighten, down to dim. Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
- Includes (1) Diva 250W LED+ Dimmer Switch; Satin Finish
- Rated for up to 250W LED or 600W Incandescent/Halogen
- No Neutral Required; 120v
- Single Pole or 3-Way compatible; Wire lead installation
- Minimum load requires 1 compatible LED or 10W Incandescent/Halogen

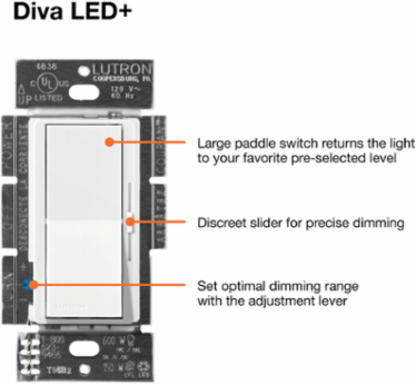

- Easy low-end trim adjustment lever; No complicated programming or turning off power to set
- Rocker switch turns lights on/off to favorite preset light level
- Linear slider dims and brightens the lights
- Available in 20+ colors
- Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
- Controls 250 W dimmable LED/CFL (screw-base), 600 W incandescent/halogen or 350 W Hi-Lume 1 percent 2-wire LED driver loads
- Paddle turns on/off
- Slide up to brighten, down to dim
- Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents
- Controls 250 W dimmable LED, 600 W incandescent/halogen or 350 W Hi-Lume 1 percent 2-wire LED driver loads. Paddle turns on/off. Slide up to brighten, down to dim. Provides reliable dimming of dimmable LEDs, as well as halogens and incandescents.
- 10 year warranty with product registration
Documentation & Downloads
Specifications
Key Specifications
| Aesthetic Finish | Satin |
|---|---|
| Connection Type | Wire Leads |
| Environmental Conditions | Indoor use only |
| Frequency Rating, Maximum | 60 Hz |
| Operating Temperature, Maximum | 104 F |
| Switch Type | Paddle Switch |
| Voltage Rating | 120 |
| Face Material | Metal;Plastic |
| Color | Brilliant White |
| Enclosure | Plastic |
| Insulation | Plastic |
| Mounting | Wallbox |

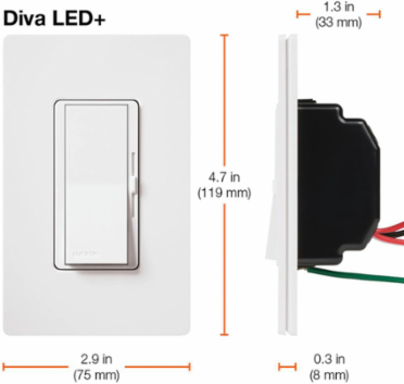

| Size | 4.69 x 2.94;119 x 75 in;mm |
| Application | Lighting Control |
|---|---|
| Decorative Color | Brilliant White |
| Family Color | White |
| Number of Poles | 1 |
| Operating Temperature, Minimum | 32 F |
| Type | Dimmer, 3-way/single-pole |
| Wattage | 600 W |
| Actuator | Paddle switch |
| Connection | Wire Leads |
| Finish | Satin |
| Material | Plastic/Metal |
| Operating Temperature | 32 to 104 F |
