Lutron DVFSQ-LF-WH Diva 3-Speed Light and Fan Control, 4.69 x 2.94 Inch, 1.5 A, White
Lutron DVFSQ-LF-WH Diva 3-Speed Light and Fan Control, 4.69 x 2.94 Inch, 1.5 A, White
- MPN: DVFSQ-LF-WH
- UPC: 784276226677
- PPN: LUT-DVFSQ-LF-WH
- UNSPSC: 39122232
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$49.61/ EA
Description

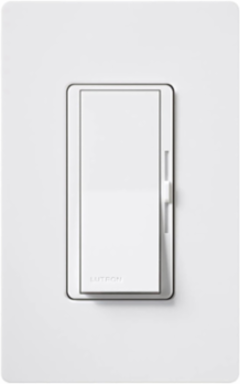

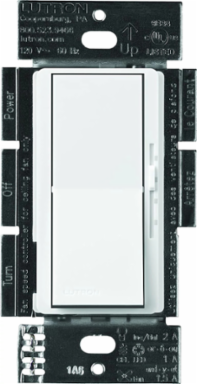

The Lutron Diva Light and Fan Switch helps you achieve the ideal comfort level for any home. It features an intuitive rocker switch to turn your lights on/off and a discreet 3-speed slider to increase or decrease the fan speed. This Diva Light/Fan Switch works with all LED, CFL, Incandescent, and Halogen bulbs. For use in single-pole applications with single ceiling paddle fans only. Coordinating Claro wall plate sold separately. Available in 20+ colors to consistently match any Lutron device.
Features
- Includes (1) Diva Light/Fan switch; Gloss finish
- No Neutral Required; 120V
- Rated up to 1.5 Amp of indoor ceiling paddle fans and 120-Watt of LED/CFL's or 240-Watt of incandescent/halogen bulbs
- One (1) ceiling paddle fan only per fan control; not compatible with fans with proprietary remotes or DC motors
- Single-Pole only
- Wire-lead connections

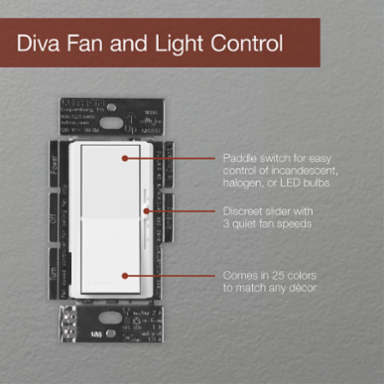

- Large paddle switch turns fan on and off to preset level and slider adjusts fan speed
- Provides 3-quiet fan speeds for increased comfort
- Fits large designer-style openings; Available in in 20+ colors
- Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
- Fan control (top) Slide up to on/increase speed, down to decrease/off
- 3 quiet fan speeds designed to prevent motor hum (for use with only one ceiling paddle fan)
- Switch (bottom) Rocker switch turns light on/off.
Specifications
Specifications
- Enclosure
- Plastic
- Size
- 4.69 x 2.94 in
- Connection
- Wire Leads
- Amperage Rating
- 1.5 A fan
- Contact Configuration
- N-O
- Wattage
- 120/240 W light
- Environmental Conditions
- 0 to 90% humidity, non-condensing
- Operating Temperature
- 32 to 104 F
- Finish
- Gloss
- Decorative Color
- White
TypeFan/light control, 3-way/single-pole
ActuatorRocker switch
Contact Rating1.5 A
MountingWallbox
ApplicationLighting and Fan Control
Voltage Rating120 VAC
Number Of Poles1
ColorWhite
Family ColorWhite
Aesthetic FinishGlossy
