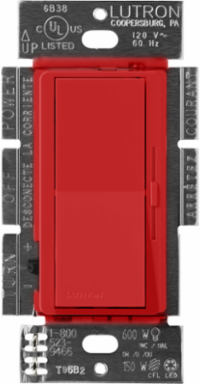

Lutron DVSCSTV-SR Diva 0-10V Dimmer Switch, 8A, Satin Finish, Paddle Switch, Signal Red
- MPN: DVSCSTV-SR
- UPC: 784276291156
- PPN: LUT-DVSCSTV-SR
- UNSPSC: 39122206
CAD
$101.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Diva 0-10V dimmer switch is a simple solution is designed to match existing design style switches and accessories. Easily turn the lights on and off with a paddle switch, and use the slide control to adjust the lights to the perfect level. The new Diva 0 - 10-Volt dimmerswitch is a 0-10 VDC dimmer with 3-way functionality for 3rd party 0-10-Volt fixtures (LED and fluorescent), no separate power pack required. Coordinating wall plate sold separately.
Features
- Controls 0-10 V LED or fluorescent fixture loads, 50 mA max control current. Paddle turns on/off. Slide up to brighten, down to dim.
- For use in controlling 0-10-Volt LED drivers and/or fluorescent ballasts
- No neutral wire or power pack required
- Large paddle switch with a captive linear-slide control for a standard designer-opening wall plate
- Can be used in single pole or 3-way applications
- Easily replaces existing switch and installs in as little as 15 minutes (no neutral wire required)
- Includes (1) Diva 0-10V dimmer switch; coordinating wallplate sold separately
- 10 year warranty with product registration
Documentation & Downloads
Specifications
Key Specifications
| Aesthetic Finish | Satin |
|---|---|
| Connection Type | Wire Leads |
| Environmental Conditions | Indoor use only |
| Frequency Rating, Minimum | 50 Hz |
| Operating Temperature, Maximum | 104 F |
| Switch Type | Paddle Switch |
| Actuator | Paddle switch |
| Connection | Wire Leads |
| Finish | Satin |
| Size | 4.69 x 2.94;119 x 75 in;mm |
| Application | Lighting Control |
|---|---|
| Decorative Color | Signal Red |
| Family Color | Red |
| Number of Poles | 1 |
| Operating Temperature, Minimum | 32 F |
| Frequency Rating | 50 to 60 Hz |
| Color | Signal Red |
| Enclosure | Plastic |
| Operating Temperature | 32 to 104 F |
