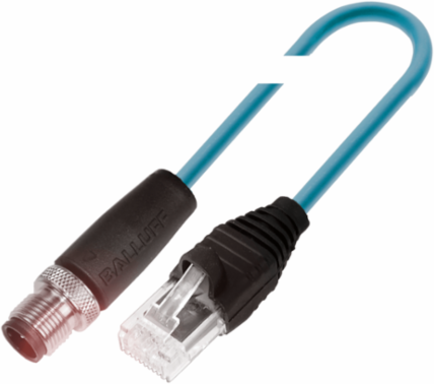

Balluff BCC M414-E894-8G-672-ES64N9-100 Double-Ended Cordset 10 Meter, IP67, 4-Pin Connections
- MPN: BCC M414-E894-8G-672-ES64N9-100
- PPN: BAL-BCC0E8P
CAD
$199.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Designed for robust performance in demanding environments, this double-ended cordset from Balluff is engineered to meet the rigorous standards of automation and control applications. With a flexible routing temperature range of -40 to 80 °C and an impressive IP67/IP20 rating, it ensures reliable operation in both wet and dry conditions. The cordset features a 10-meter TPE shielded cable that is drag chain compatible, making it an ideal choice for dynamic applications. Equipped with a straight M12x1 male connector and an RJ45 male connector, this cordset provides seamless connectivity, supporting operating voltages of up to 42 VDC and 30 VAC while conforming to CE, EAC, WEEE, and cULus standards.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 42 VDC / 30 VAC
- Transfer Rate
- 10-100 Mbit/s
- Cable Rated Voltage AC Max.
- 600 V
- Cable Temperature Range
- -40 to 80 0C
- Cable Diameter
- 6.10 mm 7.25 mm
- Number of Conductors
- 4
- Connection 2
- RJ45 Male, straight, 4-pin
- Conductor Cross-Section
- 24 AWG
- Conductor Resistance
- 6 26.0 Ohm/1000 ft
- Operating Capacitance
- 13.5 pF/ft
- Cable Bending Cycles Min.
- 10 million
- Material Contact Carrier
- PUR/PBT
- Material Grip
- PUR/PVC
IP RatingIP67/IP20
Rated Current1.0 A
Cable Rated Voltage DC Max.600 V
Cable Length10 m
Cable Jacket MaterialTPE Shielded
Connection 1M12x1 Male, straight, 4-pin, D-coded
Cable ShieldAluminum foil, copper braid
Conductor Construction2x2 twisted-pair
Coupling Resistance Max.100 Ohm 7 Ohm
Bending Radius Min.10 x cable diameter
Material ContactsBrass, phosphor bronze, gold plated
Material Cover NutBrass, nickel plated
Approval/ConformityCE, EAC, WEEE, cULus
