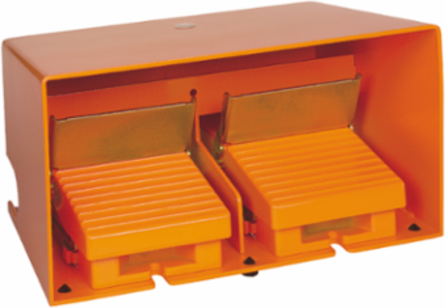

Schneider Electric XPER5110D Double foot switch, metal, Harmony XPE, orange, with cover, trigger mechanism, 1 step, 2 contacts 2 NO+NC, IP66
Schneider Electric XPER5110D Double foot switch, metal, Harmony XPE, orange, with cover, trigger mechanism, 1 step, 2 contacts 2 NO+NC, IP66
- MPN: XPER5110D
- PPN: SCH-XPER5110D
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1036.02/ EA
Description
This Harmony XPER5110D is a double foot switch. Its degree of protection is IP66. It has a cover, metallic material, orange color, 4 NC + 4 NO. It is part of the range Harmony XPE foot switches - Control and signaling units for safety applications.
Specifications
Environment
- Product Certifications
- FIMKO
- Standards
- NF E 09-031
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance150 gn NF E 09-031 || 20 gn IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP669 IEC 60529
Overvoltage Categoryclass I IEC 61140 || class I NF C 20-030
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Terminals Description Iso N°2
- B || (13-14)NO || (21-22)NC || (11-12)NC || (23-24)NO
- Positive Opening
- with IEC 60947-5-1 appendix K
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Connections - Terminals
- screw clamp terminal, <= 1 x 2.5 mm² with or without cable end || screw clamp terminal, <= 2 x 1.5 mm² with or without cable end
- Mechanical Durability
- 15000000 cycles
- Rated Operational Power In W
- 10 W DC-13 60 cyc/mn, 5000000 cycles, 24 V 0.5 IEC 60947-5-1 appendix C || 4 W DC-13 60 cyc/mn, 5000000 cycles, 120 V 0.5 IEC 60947-5-1 appendix C || 7 W DC-13 60 cyc/mn, 5000000 cycles, 48 V 0.5 IEC 60947-5-1 appendix C
Short-Circuit Protection10 A cartridge fuse gG IEC 60947-5-1 || 10 A cartridge fuse gG VDE 0660-200
Net Weight6.09 kg
[Ie] Rated Operational Current3 A, 240 V, AC-15, A300 || 0.27 A, 250 V, DC-13, Q300 IEC 60947-5-1 appendix A
[Ui] Rated Insulation Voltage500 V 3)IEC 60947-1 || 500 V 3)NF C 20-040 group C || 500 V 3)VDE 0110 group C || 300 VUL 508 || 300 VCSA C22.2 No 14
Cable Entry2 entries tapped for Pg 16 cable gland
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Specifications
- Range Of Product
- Harmony XPE
- Material
- metal
- Contacts Type And Composition
- 2 x 2 NC + 1 NO
- Contact Operation
- 1 step
- Foot Switch Type
- double foot switch
Product Or Component Typefoot switch
Trigger Mechanismwith trigger mechanism
Colourorange
Provided Equipmentcover
Device Short NameXPER
