Square D 9002AW2 Harmony Foot Switch - SPDT, NEMA 2/4/13, 600V AC, 5A Resistive
- MPN: 9002AW2
- UPC: 785901815921
- PPN: SCH-9002AW2
CAD
$396.23
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

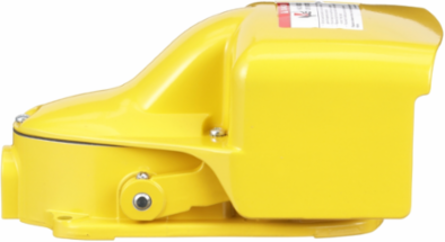

9002AW NEMA industial foot switches are heavy duty devices to used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has pedal and side shields. The single pole double throw snap switch used for the foot switch contact is rated at 5A resistive at 600 VAC. For other contact ratings, refer to the catalog. Snap switch contains two double break contact elements (1 N.O. and 1 N.C.) that must be used on circuits of same polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified.
Features

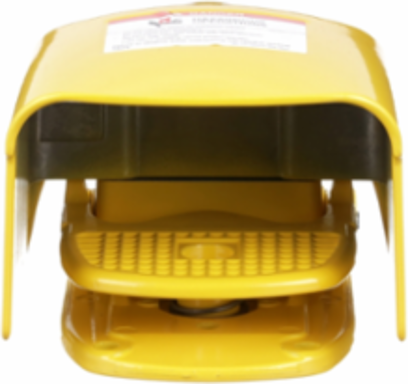

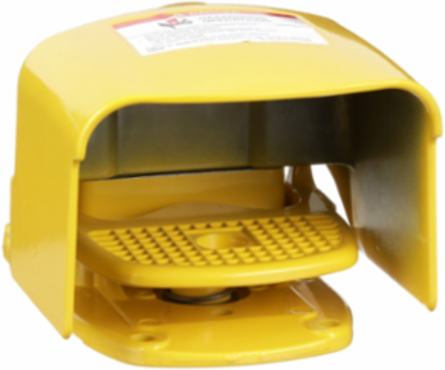

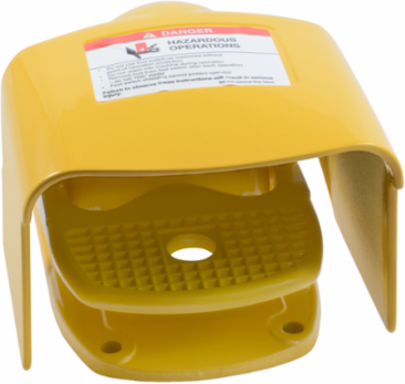

- Outfitted with both a heavy-duty top pedal shield and protective side flanges, this switch minimizes the risk of unintended machine cycling caused by falling debris, dropped tools, or misplaced footsteps. This protective barrier establishes a hands-free workstation that meets standard facility safety guidelines, effectively reducing expensive workspace liability and machinery-related injuries.
- Built with a robust cast metal enclosure, the 9002AW2 is intentionally engineered to withstand crushing weights, repetitive impacts, and aggressive workplace wear. The high-visibility safety yellow finish guarantees immediate visual spotting under conveyors, assembly stations, and metalworking machinery, maximizing operational uptime in punishing environments.
- Boasting a multi-certified watertight, dust-tight, and oil-tight design, this industrial-grade assembly completely insulates internal electrical points from fine particulate matter and fluid spray. This makes it an ideal fit for harsh automotive lines, textile mills, and machine shops where coolant mist, airborne dust, and washdown processes quickly short out lighter commercial switches.
- Featuring a high-capacity Single Pole Double Throw (1 NO / 1 NC) contact array rated for up to 600V, this switch interfaces natively with high-voltage automation circuits, safety relays, and PLC inputs. The heavy-duty double-break contact configuration prevents point welding and signaling lag, ensuring predictable machine control across long operational life cycles.

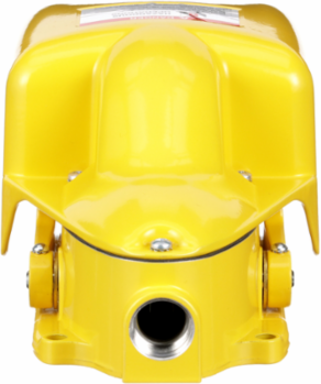

- Equipped with a standard 3/4-inch threaded NPT cable hub, the foot switch allows for swift, direct mating to liquid-tight or rigid electrical conduit. The accessible internal layout and dedicated screw terminals streamline cable routing and conductor termination, saving costly installation hours for maintenance technicians and industrial electrical contractors.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth229 mm
Complementary Attributes
- Ue Rated Operational Voltage
- 600 V AC/DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- pedal shield, side shield
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.9 kg CO2 eq., 0.8812629513
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 14 kg CO2 eq., 14.1339112591
- Certificate Agency
- UL Listed, CSA
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contact Operation
- 1 step
- Product Or Component Type
- foot switch
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 16 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2506039EN
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 123 mm
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A40.2752663415, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.3359886992, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Cable Entry0.75 inch NPT conduit entrance
Product AvailabilityStock - Normally stocked in distribution facility
Range Of Product9002AW
Software Versionv5.9.4
Switch FunctionSPDT
Type Of Operatorspring return
Warranty In Months18
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionXPE metal, single foot switch is an ideal solution for providing start and stop instructions for many types of industrial machines, running in various operating modes like normal (pulsed) start, inching, hold to run. It is designed such that the operating pedal is close to the ground and at a comfortable angle. It is delivered without a protective cover, this makes it suitable for applications where the issuing of the start instruction presents a reduced level of danger.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; US
Recyclability Potential, In %13
Width Nominal137 mm
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 15.6264292512
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2506039EN
Nema Degree Of ProtectionNEMA 4/13
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2506039EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- foot switch
Range Of Product9002AW
ETIM
- ETIM 8
- EC001258
ETIM 9EC001258
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
