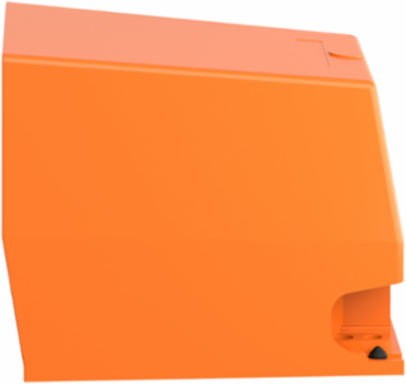

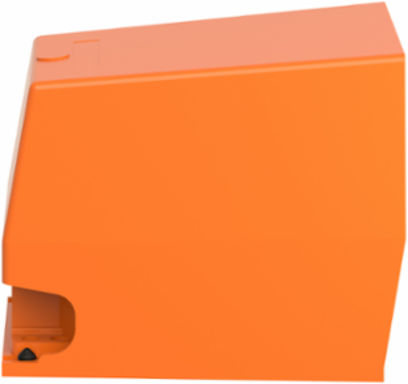

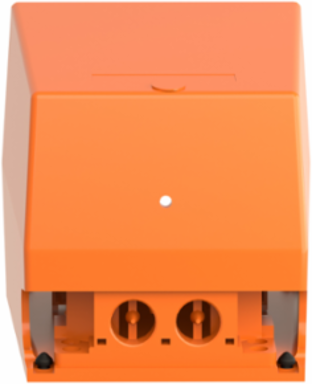

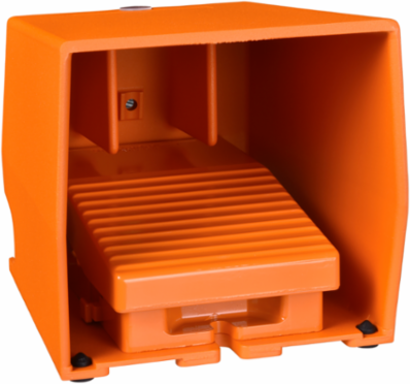

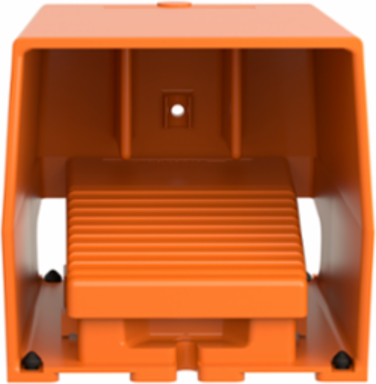

Schneider Electric XPER311 Harmony XPE Double Foot Switch, IP66, Metal, 2 NC + 2 NO, 2.42 kg
- MPN: XPER311
- PPN: SCH-XPER311
CAD
$459.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XPER311 is a single foot switch. Its degree of protection is IP66. It has a cover, metallic material, orange color, 2 NC + 2 NO. It is part of the range Harmony XPE foot switches - Control and signaling units for safety applications.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XPE
- Material
- metal
- Contacts Type And Composition
- 2 NC + NO
- Contact Operation
- 1 step
- Foot Switch Type
- single foot switch
Product Or Component Typefoot switch
Trigger Mechanismwithout trigger mechanism
Colourorange
Provided Equipmentcover
Device Short NameXPER
Complementary
- Short-Circuit Protection
- 10 A cartridge fuse gG EN/IEC 60947-5-1 || 10 A cartridge fuse gG VDE 0660-200
- Net Weight
- 2.42 kg
- [Ie] Rated Operational Current
- 3 A, 240 V, AC-15, A300 || 0.27 A, 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
- [Ui] Rated Insulation Voltage
- 500 V 3)EN/IEC 60947-1 || 500 V 3)NF C 20-040 group C || 500 V 3)VDE 0110 group C || 300 VUL 508 || 300 VCSA C22.2 No 14
- Cable Entry
- 2 entries tapped for Pg 16 cable gland
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Positive Openingwith EN/IEC 60947-5-1 appendix K
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1
Connections - Terminalsscrew clamp terminal, <= 1 x 2.5 mm² with or without cable end || screw clamp terminal, <= 2 x 1.5 mm² with or without cable end
Mechanical Durability15000000 cycles
Rated Operational Power In W10 W DC-13 60 cyc/mn, 5000000 cycles, 24 V 0.5 EN/IEC 60947-5-1 appendix C || 4 W DC-13 60 cyc/mn, 5000000 cycles, 120 V 0.5 EN/IEC 60947-5-1 appendix C || 7 W DC-13 60 cyc/mn, 5000000 cycles, 48 V 0.5 EN/IEC 60947-5-1 appendix C
Environment
- Product Certifications
- FIMKO
- Standards
- NF E 09-031
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance150 gn NF E 09-031 || 20 gn IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP669 NF C 20-010
Overvoltage Categoryclass I EN/IEC 61140 || class I NF C 20-030
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
