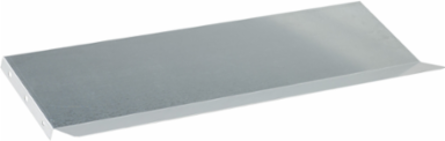

Square D HCT2DH32 Drip Hood for I-Line Panelboard, 32 Inch W x 9.5 Inch D, Surface Mounted
- MPN: HCT2DH32
- UPC: 785901416920
- PPN: SCH-HCT2DH32
CAD
$241.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This drip hood from Schneider Electric is specifically designed for the I-Line panelboard, providing robust surface-mounted protection. Measuring 32 inches wide and 9.5 inches deep, it effectively channels water away from the panel, ensuring reliable operation and longevity of electrical components. An essential accessory within power distribution and load management setups, this drip hood enhances the safety and resilience of your electrical installations, making it a valuable addition for any panel board configuration.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Depth | 2.52 in |
|---|
Important Information Attributes
| Certificate Agency | cULus, CE |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 6 kg CO2 eq., 5.908396501404135 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 22 kg CO2 eq., 21.815765630053896 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1847 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Product Destination | panelboard HCM 32 in 48 in 8.25 in |
| Range Of Product | I-Line |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 29 kg CO2 eq. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Accommodate and protect control, command and protection devices via a panelboard cover/trim with door (2184.4 mm x 241.3 mm x 1073.15 mm) , providing protection levels IP = IP30 and IK = IK07,or a reference service life of 20 years, in commercial/industrial applications |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; United States, US |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 97 |
| Width Nominal | 8.943 in |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | Yes |
| Warranty (In Months) | 18 |
| Carbon Footprint Of The Distribution Phase [A4] | 1.276747184442174, 1 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase [A5] | 0.0056348695789730265, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | drip hood |
| Returnability | Yes |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2509036EN |
| Pep Verification Date | 2025-10-15 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | [A5] |
| Energy Model - End Of Life [C1-c4] | [C1 - C4] |
| Height Nominal | 32 in |
| Halogen-free Status | Halogen free product |
| Package Weight(Lbs) | 4.418 kg |
| Take-back | No |
| Customs Code | 7326908688 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Halogene Performance | Halogen free product |
| Mercury Free | Yes |
| Carbon Footprint | 29.00654418547918 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-10-15 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Silicon Free | Yes |
| Environmental Disclosure | ENVPEP2509036EN |
| Halogen Content Performance | Halogen free product |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2509036EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | drip hood |
|---|
| Range Of Product | I-Line |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
