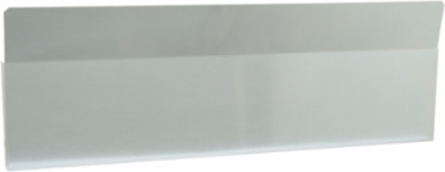

Square D MHT2DH26 Panelboard enclosure drip hood, NQ/NF, Type 2, 26in
- MPN: MHT2DH26
- UPC: 785901409557
- PPN: SCH-MHT2DH26
- UNSPSC: 39121112
CAD
$348.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
NQ and NF Panelboards applications include commercial buildings, industrial buildings, data centers, stadiums, and offices. NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. These panelboards have many different options for your enclosure box and its accessories. This drip shield is for a Type 2 enclosure. The hood is 26 inches wide. NQ and NF enclosures are UL listed for use in the USA and Canada.
Features
- Modular construction allows for easy assembly or modification
- Available enclosures NEMA Type 1, 2, 3R, 4, 4X, 5, and 12
- Accessories and replacement parts allow design flexibility and maximizes job productivity
- Type 1, 2, 3R/5/12 available ready to install from distributor inventory
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|
| Weight | 2268 g |
|---|
Important Information Attributes
| Carbon Footprint Of The Distribution Phase A4 | 1.1816224535188133, 1 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase A5 | 0.00000228083067422788, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2025-11-13 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | No |
| Sustainable Packaging | No |
| Database Version | 2024-01 |
| Width Nominal | 26 in |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 3 kg CO2 eq., 3.348778343970589 |
|---|---|
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 14 kg CO2 eq., 14.044094442300542 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Energy Efficiency Optimized | False |
| Product Or Component Type | drip hood |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 19 kg CO2 eq. |
| Data Source | extrapolated product |
| Certificate Agency | cULus |
| Customs Code | 8538908180 |
| Functional Unit Description | Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 97 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 18.574497520620618 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2510012_V1-EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2510012_V1-EN |
| Nema Degree Of Protection | NEMA 2 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-11-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | drip hood |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
