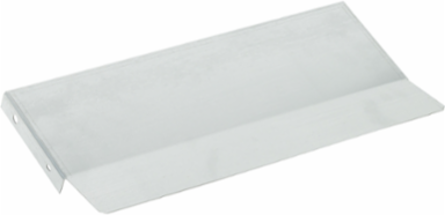

Square D MHT2DH20 Enclosure Drip Hood Type 2, 20 Inch, NEMA 2, UL Listed
- MPN: MHT2DH20
- UPC: 785901459163
- PPN: SCH-MHT2DH20
CAD
$170.74
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NQ and NF Panelboards applications include commercial buildings, industrial buildings, data centers, stadiums, and offices. NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. These panelboards have many different options for your enclosure box and its accessories. This drip shield is for a Type 2 enclosure. The hood is 20 inches wide. NQ and NF enclosures are UL listed for use in the USA and Canada.
Features
- Specifically engineered to meet NEMA 2 standards, this drip hood provides a critical barrier against falling dirt and liquid dripping from overhead pipes or condensation. Adding this protective shield to your enclosure prevents moisture ingress that can lead to short circuits and internal corrosion, significantly extending the service life of your sensitive electrical components in industrial and commercial environments.
- Designed as a factory-authorized accessory for Schneider Electric/Square D MH-style enclosures, this drip hood ensures a perfect mechanical fit without the need for field modifications. Using a precision-matched OEM component maintains the original integrity of your enclosure's safety rating, allowing for a seamless, professional installation that meets all manufacturer specifications.
- Fabricated from high-grade, corrosion-resistant sheet steel with a durable finish, the MHT2DH20 is built to withstand the physical demands of high-traffic mechanical rooms and warehouses. Its rugged design ensures it won't warp or degrade over time, providing a permanent, low-maintenance solution for protecting your power distribution equipment from accidental spills or overhead leaks.
- Featuring a streamlined design with pre-drilled alignment points, this 20-inch drip hood allows for rapid field installation directly onto the top of your existing panelboard enclosure. The included hardware and intuitive mounting process allow electrical contractors to quickly upgrade indoor enclosures to Type 2 protection, ensuring the project stays on schedule while meeting local building codes for moisture-prone areas.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Carbon Footprint Of The Distribution Phase [A4]
- 0.9711394415163439, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.00000187454513966524, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Commercial
- Cover Type
- drip shield cover
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2510012_V1-EN
- Pep Verification Date
- 2025-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Width Nominal
- 20 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 7326908688
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 2.752258744780061
Carbon Footprint Of The Manufacturing Phase [A1 To A3]12 kg CO2 eq., 11.542412716247007
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Product Or Component Typedrip hood
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint15 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity origin
Recyclability Potential In %97
Certificate AgencycULus
Package Weight(Lbs)1.846 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 15.265812777088552
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2510012_V1-EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2510012_V1-EN
Nema Degree Of ProtectionNEMA 2
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- drip hood
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
