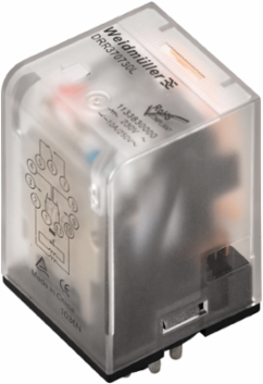

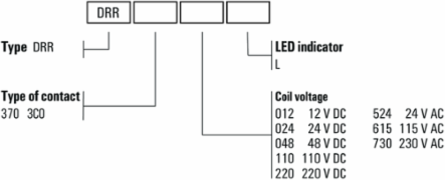

Weidmuller 1133820000 D-SERIES Relay Module, 3 CO Contacts, 115 V AC, 10 A Continuous Current, IP20
- MPN: 1133820000
- PPN: WDM-1133820000
CAD
$24.57
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
D-SERIES DRR, Relay, Number of contacts: 3 CO contact AgNi, Rated control voltage: 115 V AC, Continuous current: 10 A, Plug-in connection
Documentation & Downloads
Specifications
General Data
| Mechanical switch position indicator | Yes |
|---|---|
| UL 94 flammability rating | V-2 |
| Colour | Transparent |
|---|
Approvals
| Approvals | CE, cURus, EAC |
|---|---|
| UL File Number Search | E312083 |
| ROHS | Conform |
|---|

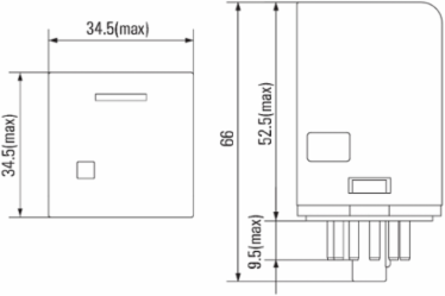

Dimensions And Weights
| Width | 34.5 mm |
|---|---|
| Height | 34.5 mm |
| Depth | 66 mm |
| Net weight | 87.6 g |
| Width (inches) | 1.358 inch |
|---|---|
| Height (inches) | 1.358 inch |
| Depth (inches) | 2.598 inch |
Connection Data
| Wire connection method | Plug-in connection |
|---|
Rated Data Ul
| Certificate No. (cURus) | E312083 |
|---|

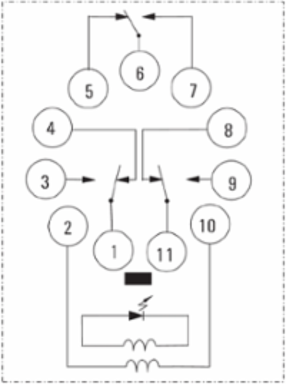

Contact Data
| Contact type | 3 CO contact (AgNi) |
|---|---|

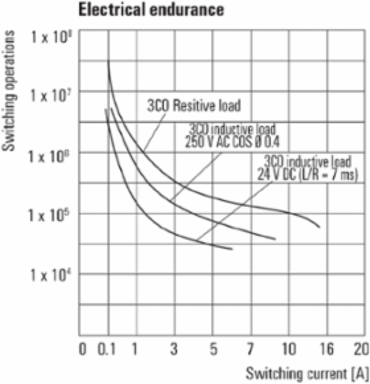

| Mechanical service life | 10 x 106 switching cycles |
| Contact resistance | ≤ 50 mΩ |
|---|

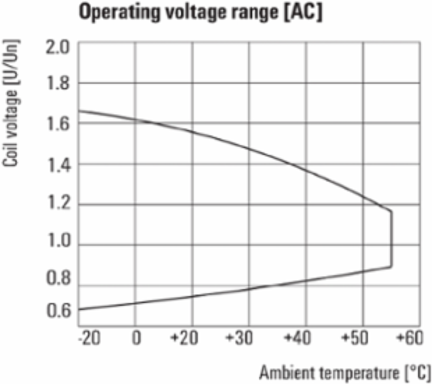

Input
| Rated control voltage | 115 V AC |
|---|---|
| Power rating | 2.7 VA |
| Coil resistance | 1250 Ω ± 10 % |
| Rated current AC | 29.8 mA (50 Hz), 25.4 mA (60 Hz) |
|---|---|
| Pull-in/drop-out voltage, typ. | 92 V / 34.5 V AC |
| Status indicator | red LED |
Classifications
| ETIM 6.0 | EC001437 |
|---|---|
| eClass 9.0 | 27-37-16-01 |
| eClass 10.0 | 27-37-16-01 |
| ETIM 7.0 | EC001437 |
|---|---|
| eClass 9.1 | 27-37-16-01 |
Output
| Rated switching voltage | 250 V AC |
|---|---|
| Continuous current | 10 A |
| AC switching capacity (resistive), max. | 2500 VA |
| Switch-on delay | < 30 ms |
| Min. switching power | 100 mA @ 12 V |
| Max. switching voltage, AC | 250 V |
|---|---|
| Inrush current | 50 A / 50 ms |

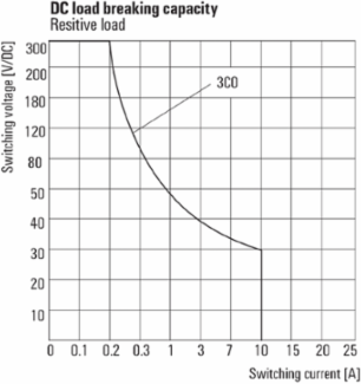

| DC switching capacity (resistive), max. | 240 W @ 24 V |
| Switch-off delay | < 20 ms |
| Max. switching frequency at rated load | 0.1 Hz |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| Rated voltage | 250 V |
|---|---|
| Pollution severity | 3 |
| Protection degree | IP20 |
| Creepage and clearance distance input – output | ≥ 3 mm |
| Dielectric strength of open contact | 1.2 kVeff /1 min. |
| Surge voltage category | III |
|---|---|
| Insulating material group | IIIa |
| Dielectric strength, Input/Output | 2.5 kVeff / 1 Min. |
| Dielectric strength of neighbouring contacts | 1.2 kVeff /1 min. |
| Impulse withstand voltage | 4 kV (1.2/50 µs) |
Temperatures
| Humidity | 5...85 % rel. humidity, no condensation |
|---|---|
| Operating temperature, min. | -25 °C |
| Storage temperature, min. | -25 °C |
| Storage temperature | -25 °C...55 °C |
| Operating temperature, max. | 55 °C |
|---|---|
| Storage temperature, max. | 55 °C |
| Operating temperature | -25 °C...55 °C |
Further Details Of Approvals / Standards
| Standards | IEC 61810-1, EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007 + A1:2011, UL 508 |
|---|
| Certificate No. (cURus) | E312083 |
|---|
