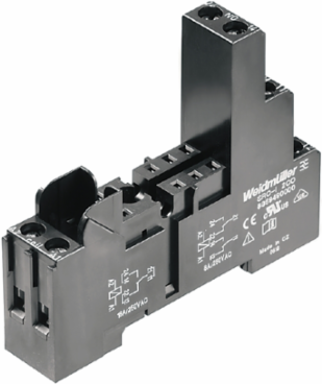

Weidmuller 8869490000 SRC-I 2CO Relay Module, 2 CO Contacts, 12 A Continuous Current, 2.5 mm2
- MPN: 8869490000
- PPN: WDM-8869490000
CAD
$9.36
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
RIDERSERIES RCI, Relay bases, Number of contacts: 2 CO contact, Continuous current: 12 A, 16 A(1, Screw connection
Documentation & Downloads
Specifications
General Data

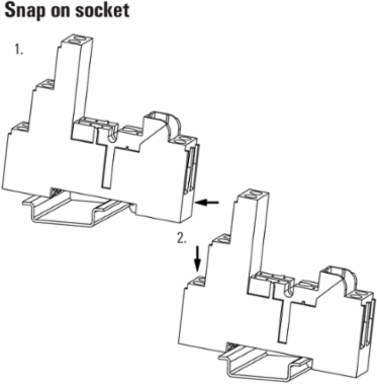

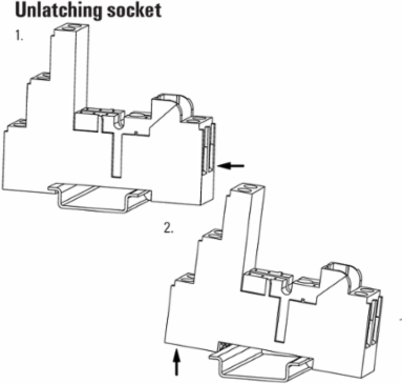

- Rail
- TS 35
- UL 94 flammability rating
- V-0
Colourblack
Approvals
- Approvals
- CE, CSA, cURus
- UL File Number Search
- E223759
ROHSConform

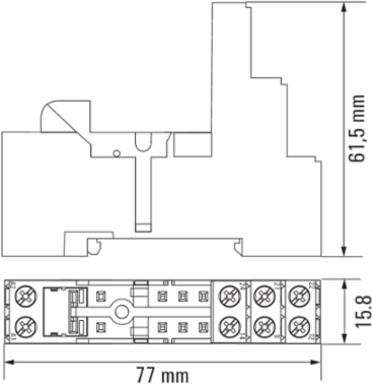

Dimensions And Weights
- Width
- 15.8 mm
- Height
- 77 mm
- Depth
- 61.5 mm
- Net weight
- 39.28 g
Width (inches)0.622 inch
Height (inches)3.031 inch
Depth (inches)2.421 inch
Connection Data
- Wire connection method
- Screw connection
- Tightening torque, min.
- 0.5 Nm
- Clamping range, rated connection
- 2.5 mm²
- Clamping range, max.
- 2.5 mm²
- Wire cross-section, solid, max.
- 2.5 mm²
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 2.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 2.5 mm²
- Wire cross-section, finely stranded, two clampable wires, max.
- 1.5 mm²
- Pitch in mm (P)
- 5 mm
Stripping length, rated connection8 mm
Tightening torque, max.0.7 Nm
Clamping range, min.1 mm²
Wire cross-section, solid, min.1 mm²
Wire connection cross-section, finely stranded, min.1 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.1 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.1 mm²
Wire connection cross section, finely stranded, two clampable wires, min.1 mm²
Blade sizesize PZ1
Rated Data Ul
- Certificate No. (cURus)
- E223759
Contact Data
- Contact type
- 2 CO contact
Classifications
- ETIM 6.0
- EC001456
- eClass 9.0
- 27-37-16-03
- eClass 10.0
- 27-37-16-03
ETIM 7.0EC001456
eClass 9.127-37-16-03
UNSPSC30-21-19-17
Output
- Rated switching voltage
- 250 V AC
- Continuous current
- 12 A, 16 A(1
Max. switching voltage, AC400 V
Product Information
- Product information

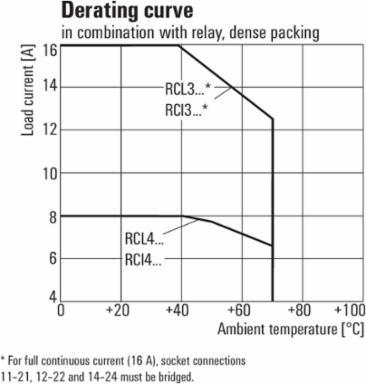

- 1) For full continuous current (16 A), relay connections 11–21, 12–22 and 14–24 must be bridged. IP20 without connected conductor at complete opened clamping yoke connection.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Rated voltage
- 250 V
- Pollution severity
- 2
- Protection degree
- IP20
- Dielectric strength, Input/Output
- 5 kVeff / 1min
- Type of isolation at neighbouring contacts
- Functional insulation
- Dielectric strength of open contact
- 1 kVeff / 1 min
Surge voltage categoryIII
Insulating material groupIIIa
Type of isolation at input and outputreinforced insulation
Creepage and clearance distance input – output≥ 10 mm
Dielectric strength of neighbouring contacts2.5 kVeff / 1 Min.
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...70 °C
Operating temperature, max.70 °C
Storage temperature, max.70 °C
Operating temperature-40 °C...70 °C
Further Details Of Approvals / Standards
- Standards
- IEC 61810-1, UL508
- Certificate No. (cURus)
- E223759
Certificate No. (CSA)249409-2295474
