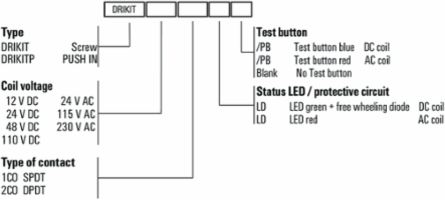

Weidmuller 2476820000 DRIKIT 24VDC 2CO LD
Weidmuller 2476820000 DRIKIT 24VDC 2CO LD
- MPN: 2476820000
- PPN: WDM-2476820000
Spec sheet
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$22.28/ EA
Description

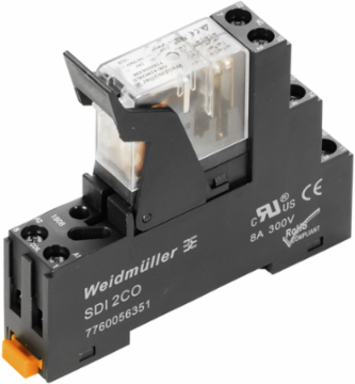

D-SERIES DRI, Relay module, Number of contacts: 2 CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 5 A, Screw connection
Specifications
General Data
- Rail
- TS 35
- Mechanical switch position indicator
- No
Test buttonNo
Colourblack
Approvals
- Approvals
- CE, EAC

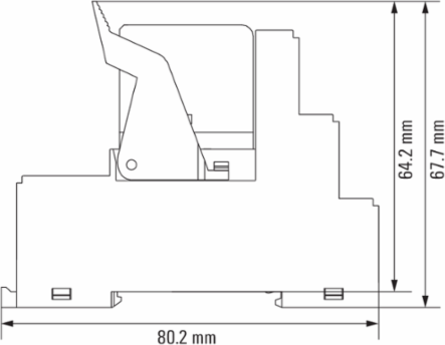

Dimensions And Weights
- Width
- 15.8 mm
- Height
- 80.2 mm
- Depth
- 67.7 mm
- Net weight
- 64 g
Width (inches)0.622 inch
Height (inches)3.157 inch
Depth (inches)2.665 inch
Connection Data
- Wire connection method
- Screw connection
- Tightening torque, min.
- 0.5 Nm
- Clamping range, rated connection
- 1.5 mm²
- Clamping range, max.
- 4 mm²
- Wire cross-section, solid, max.
- 4 mm²
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 4 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 4 mm²
- Gauge to IEC 60947-1
- A3
Stripping length, rated connection8 mm
Tightening torque, max.0.8 Nm
Clamping range, min.0.25 mm²
Wire cross-section, solid, min.0.25 mm²
Wire connection cross-section, finely stranded, min.0.25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.25 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.0.25 mm²
Blade sizesize PH1
Contact Data
- Contact type
- 2 CO contact (AgNi)
Mechanical service life10 x 106 switching cycles

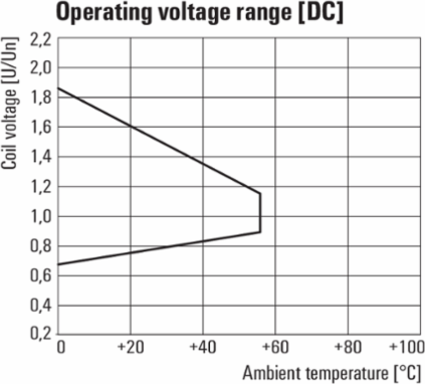

Input
- Rated control voltage
- 24 V DC
- Power rating
- 530 mW
- Coil resistance
- 1100 Ω ± 10 %
- Protective circuit
- Free-wheeling diode
Rated current DC21,8 mA
Pull-in/drop-out voltage, typ.18 V / 3.6 V DC
Status indicatorGreen LED
Classifications
- ETIM 6.0
- EC001437
- eClass 9.0
- 27-37-16-01
- eClass 10.0
- 27-37-16-01
ETIM 7.0EC001437
eClass 9.127-37-16-01

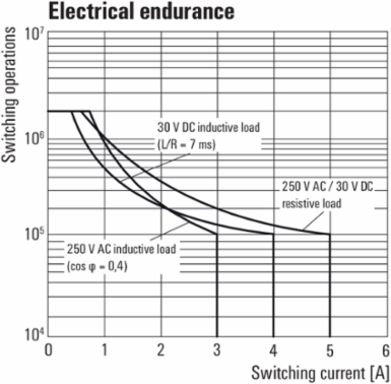

Output
- Rated switching voltage
- 250 V AC
- Max. switching voltage, DC
- 250 V
- AC switching capacity (resistive), max.
- 1250 VA
- Switch-on delay
- ≤ 15 ms
- Min. switching power
- 10 mA @ 12 V, 100 mA @ 5 V
Max. switching voltage, AC250 V
Continuous current5 A

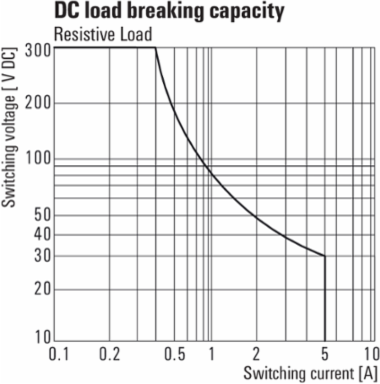

DC switching capacity (resistive), max.150 W @ 24 V
Switch-off delay≤ 10 ms
Max. switching frequency at rated load0.1 Hz
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Rated voltage
- 250 V
- Pollution severity
- 2
- Protection degree
- IP20
- Creepage and clearance distance input – output
- ≥ 3 mm
- Dielectric strength of open contact
- 1 kVeff / 1 min
Surge voltage categoryIII
Insulating material groupIIIb
Dielectric strength, Input/Output4 kVeff / 1 min
Dielectric strength of neighbouring contacts1.5 kVeff /1 min.
Impulse withstand voltage4.8 kV (1.2/50 µs)
Temperatures
- Humidity
- 35...85 % rel. humidity, no condensation
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Operating temperature, max.55 °C
Storage temperature, max.85 °C
Operating temperature-40 °C...55 °C
Further Details Of Approvals / Standards
- Standards
- IEC 61810-1, EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007 + A1:2011
- Certificate no. (cURus) base
- E355547
Certificate no. (cURus) relayE312083
