Weidmuller 8881620000 RCI Relay Module 24VAC 2 CO Contacts, 8A, IP20, Width 15.8mm, Depth 70.2mm

MPN: 8881620000
PPN: WDM-8881620000

$37.66

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

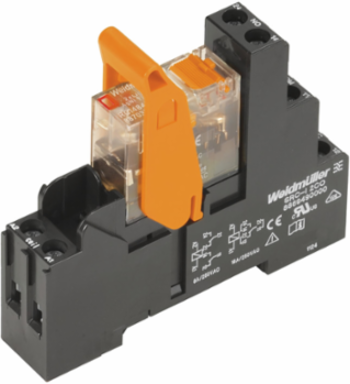

RIDERSERIES RCI, Relay module, Number of contacts: 2 CO contact with test button AgNi 90/10, Rated control voltage: 24 V AC, Continuous current: 8 A, Screw connection

Documentation & Downloads

Specifications

General Data

Rail	TS 35
Mechanical switch position indicator	Yes

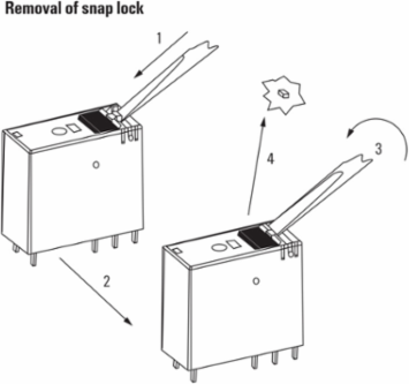

Test button	yes (loackable, just when removing the detent lock)
Colour	black

Approvals

Approvals	CE, DNV GL, EAC

ROHS	Conform

Dimensions And Weights

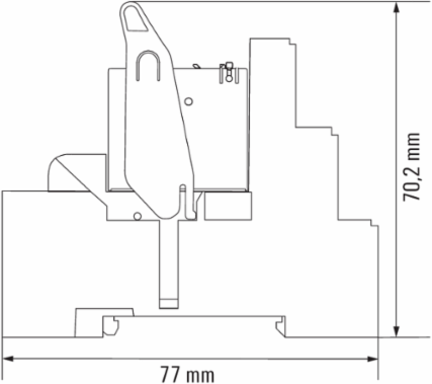

Width	15.8 mm
Height	77 mm
Depth	70.2 mm
Net weight	62.5 g

Width (inches)	0.622 inch
Height (inches)	3.031 inch
Depth (inches)	2.764 inch

Connection Data

Wire connection method	Screw connection
Tightening torque, min.	0.5 Nm
Clamping range, rated connection	2.5 mm²
Clamping range, max.	2.5 mm²
Wire cross-section, solid, max.	2.5 mm²
Wire connection cross section, finely stranded, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.	2.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.	1.5 mm²

Stripping length, rated connection	8 mm
Tightening torque, max.	0.7 Nm
Clamping range, min.	1 mm²
Wire cross-section, solid, min.	1 mm²
Wire connection cross-section, finely stranded, min.	1 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	1 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.	1 mm²
Wire connection cross section, finely stranded, two clampable wires, min.	1 mm²
Blade size	size PZ1

Contact Data

Contact type	2 CO contact with test button (AgNi 90/10)

Mechanical service life	AC coil 5 x 106 switching cycles, DC coil 10 x 106 switching cycles

Input

Rated control voltage	24 V AC
Power rating	0.75 VA
Coil resistance	350 Ω ± 10 %

Rated current AC	31.6 mA

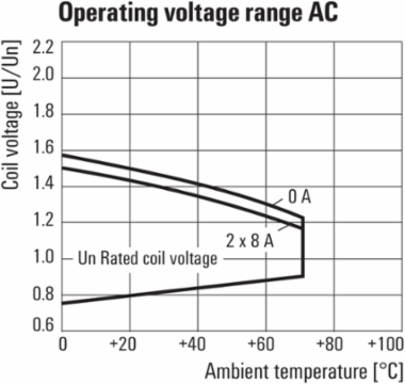

Pull-in/drop-out voltage, typ.	18 V / 3.6 V AC
Status indicator	red LED

Classifications

ETIM 6.0	EC001437
eClass 9.0	27-37-16-01
eClass 10.0	27-37-16-01

ETIM 7.0	EC001437
eClass 9.1	27-37-16-01
UNSPSC	30-21-19-17

Output

Rated switching voltage	250 V AC
Continuous current	8 A

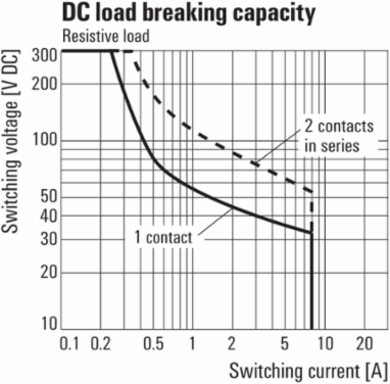

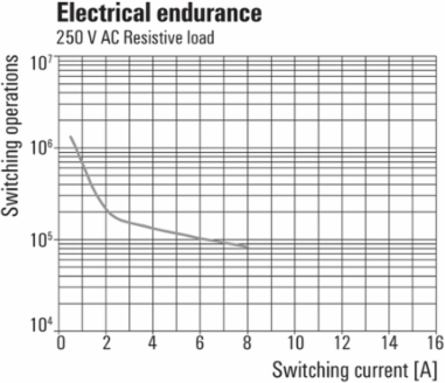

AC switching capacity (resistive), max.	2000 VA
Switch-on delay	≤ 10 ms
Min. switching power	1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V

Max. switching voltage, AC	400 V
Inrush current	15 A / 4 s
DC switching capacity (resistive), max.	192 W @ 24 V
Switch-off delay	≤ 6 ms
Max. switching frequency at rated load	0.1 Hz

Product Information

Product information	IP20 without connected conductor at complete opened clamping yoke connection.

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Insulation Coordination

Rated voltage	250 V
Pollution severity	2
Protection degree	IP20
Creepage and clearance distance input – output	≥ 8 mm
Dielectric strength of open contact	1 kVeff / 1 min

Surge voltage category	III
Insulating material group	IIIa
Dielectric strength, Input/Output	5 kVeff / 1min
Dielectric strength of neighbouring contacts	2.5 kVeff / 1 Min.
Impulse withstand voltage	5 kV (1.2/50 µs)

Temperatures

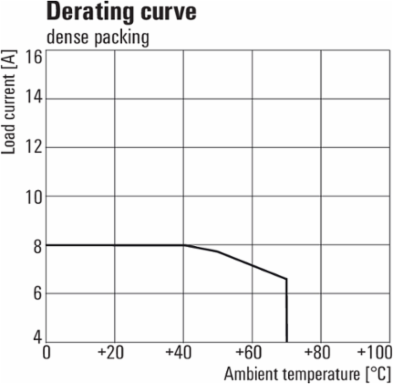

Humidity	40 °C / 93 % rel. humidity, no condensation
Operating temperature, min.	-40 °C
Storage temperature, min.	-40 °C
Storage temperature	-40 °C...70 °C
