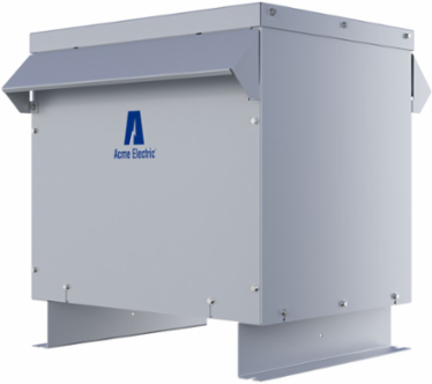

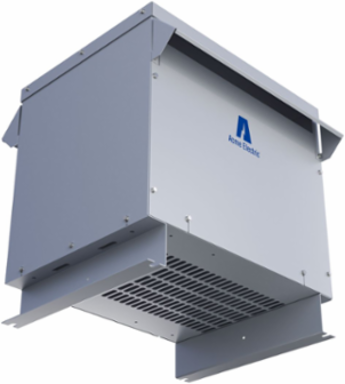

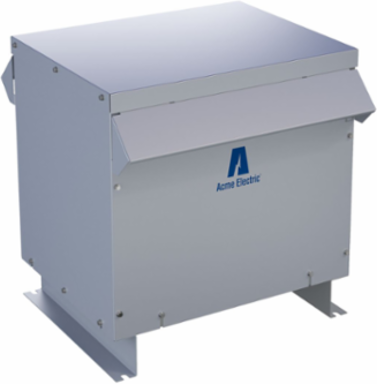

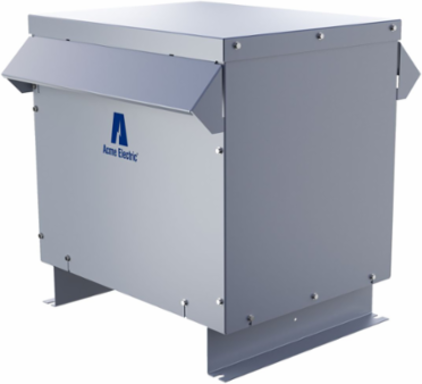

Acme Electric T3015K0064BS Dry Type Distribution Transformer 15 kVA 208Y/120V 3 Phase 290 lb.

MPN: T3015K0064BS
UPC: 047503092712
PPN: HBL-T3015K0064BS
UNSPSC: 39121001

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

208Δ Primary Volts - 208Y/120 Secondary Volts - 3Ø

Features

Quiet operation with sound levels below NEMA standards
Electrostatic shield for enhanced protection

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
BNFC Taps	2
Dept of Energy Regulation	Meets or exceed U.S. DOE 10 CFR Part 431
kVA	15.0
Product Category	Dry Type Distribution Transformer
Secondary Voltage	208Y/120 V
Efficiency	97.89%
Height	25.5 in
Mounting	Floor
Width	24.39 in
UL Standard	UL 1561
Material type	ZFIN
Nema Rating	NEMA 3R
Class Code	D10
Harmonization Code	8504320000
Sub Class Code	D10D100
Electrostatic Shield	Shielded
Construction	Ventilated
BOX SIZE	37.000x38.000x38.000 (in)
Pallet Height	37.000 in
Pallet Weight	290.000 lb.
NAICS Code	335311

ANFC Taps	2
CSA Standard	C22.2 No. 47
Dimensions	19.37 in x 24.39 in x 25.5 in
Max Temperature Rise	150 Degrees Celsius
Product Type	Dry Type Distribution Transformer
Taps % Steps	2.5%
Frequency Rating	60 Hz
Length	19.37 in
Primary Voltage	208D V
UL Insulation Class	220°C
Weight	290 lb.
Mounting Type	Floor
ARRA Compliant	Contact Manufacturer
Freight Class Code	06342001
Image Actual Or Representative	A
Buy America(n) Qualified	Contact Manufacturer
Winding Material	AL
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00047503092712
Pallet Length	38.000 in
Pallet Width	38.000 in
