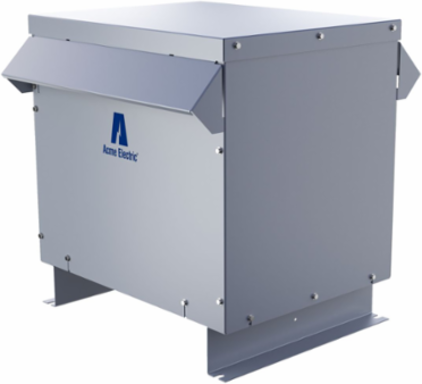

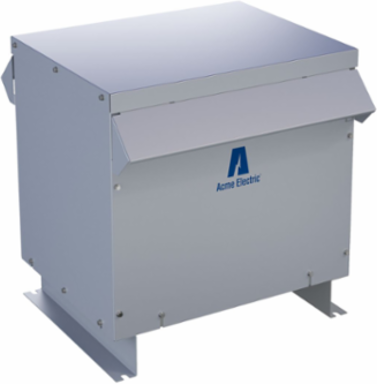

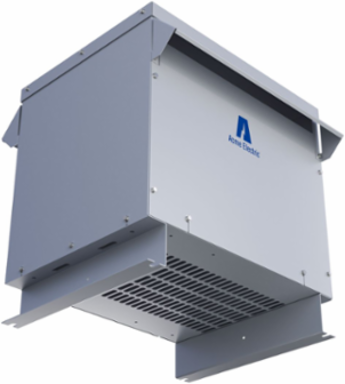

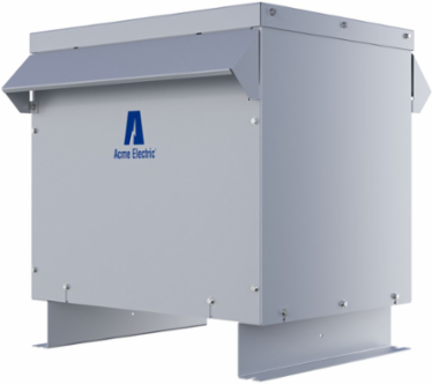

Acme Electric T3015K0013B Low Voltage Distribution Transformer 15 kVA, 480V-208Y/120V, 290 lb.

MPN: T3015K0013B
UPC: 047503091111
PPN: HBL-T3015K0013B
UNSPSC: 39121001

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Low Voltage Distribution Transformer - Three Phase, 480Δ - 208Y/120V, 15kVA

Features

Quiet operation with sound levels below NEMA standards

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
BNFC Taps	4
Dept of Energy Regulation	Meets or exceed U.S. DOE 10 CFR Part 431
kVA	15.0
Product Category	Dry Type Distribution Transformer
Secondary Voltage	208Y/120 V
Efficiency	97.89%
Height	25.5 in
Mounting	Floor
Width	24.39 in
UL Standard	UL 1561
Material type	ZFIN
Nema Rating	NEMA 3R
Class Code	D10
Harmonization Code	8504320000
Stock Indicator	S - Shelf Stock
Winding Material	AL
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00047503091111
Pallet Length	38.000 in
Pallet Width	38.000 in

ANFC Taps	2
CSA Standard	C22.2 No. 47
Dimensions	19.37 in x 24.39 in x 25.5 in
Max Temperature Rise	150 Degrees Celsius
Product Type	Dry Type Distribution Transformer
Taps % Steps	2.5%
Frequency Rating	60 Hz
Length	19.37 in
Primary Voltage	480D V
UL Insulation Class	220°C
Weight	290 lb.
Mounting Type	Floor
ARRA Compliant	Contact Manufacturer
Freight Class Code	06342001
Image Actual Or Representative	A
Sub Class Code	D10D100
Construction	Ventilated
BOX SIZE	37.000x38.000x38.000 (in)
Pallet Height	37.000 in
Pallet Weight	275.000 lb.
NAICS Code	335311
