Klein Tools NCVT5KIT Dual-Range Non-Contact Voltage Tester & GFCI Receptacle Tester Kit (12-1000V)
- MPN: NCVT5KIT
- UPC: 092644692369
- PPN: KLT-NCVT5KIT
- UNSPSC: 41113637
CAD
$58.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

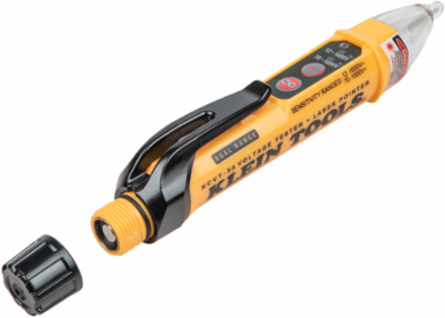

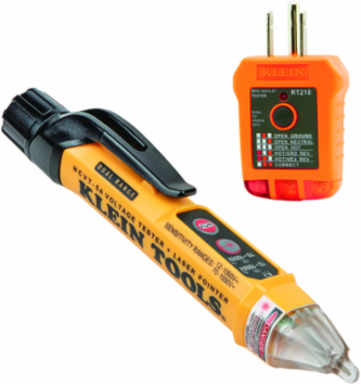

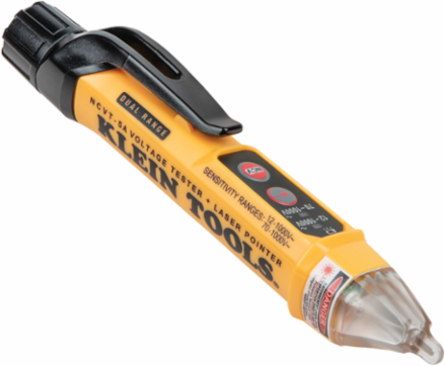

The NCVT5KIT includes a dual-range non-contact voltage tester with laser pointer and a GFCI receptacle tester. The NCVT-5A automatically detects and indicates voltage (12 - 1000V) allowing broad application. The RT210 will troubleshoot the most common wiring problems in standard and GFCI receptacles.
Features

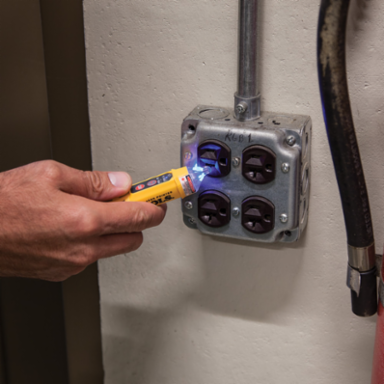

- NCVT-5A provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, as well as AC voltage in security, entertainment, communications, environmental control and irrigation systems

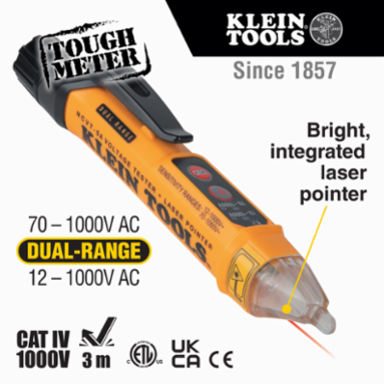

- Dual-range testing: select 12 to 1000V AC which is perfect for low voltage systems such as doorbells, environmental control or irrigation systems, or select 70 to 1000V AC which is perfect for detecting systems such as electrical mains supply
- NCVT-5A delivers simultaneous visual and audible voltage indicators when AC voltage is detected
- Audible voltage indicator beeps at a greater frequency the higher the voltage that is sensed, or the closer to the voltage source it is

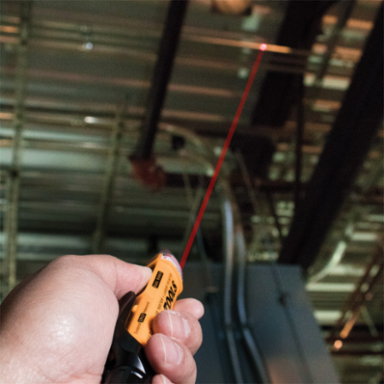

- Bright integrated laser pointer for identifying objects of interest at distance on the jobsite

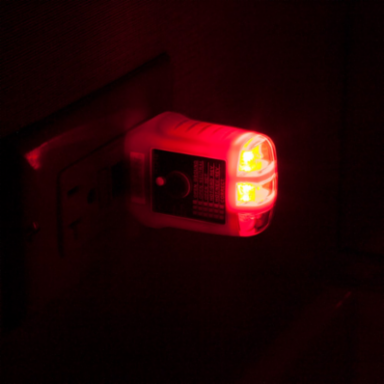

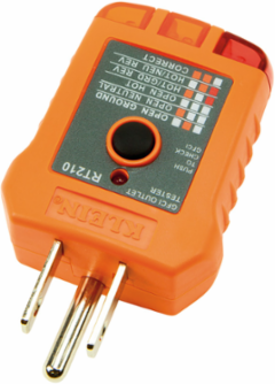

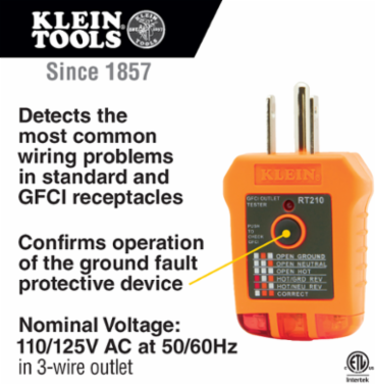

- RT210 detects the most common wiring problems in standard and GFCI receptacles

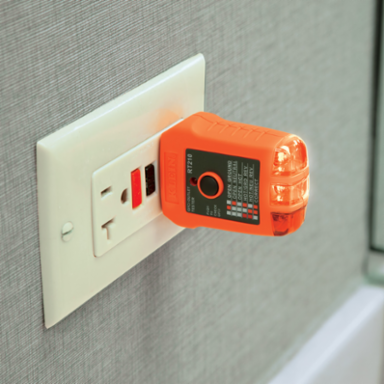

- Works on GFCI outlets and confirms operation of the ground fault protective device
- Conditions the RT210 indicates: open ground, reverse polarity, open hot, open neutral, hot/ground reversed
- Integrated High Strength Red Laser Pointer, Dual Range Tester (70-1000V; 12V-1000V) AC Voltage Detection, Simultaneous Visual and Audible Voltage Indicators in the Presence of AC Voltage; US Patent No. D750985
Documentation & Downloads
Specifications
Key Specifications
- Voltage
- 12 to 1000 VAC
- Material
- Plastic and Electronic Assemblies
- Application
- Dual-Range Non-contact Detection of the Presence of AC Voltage from 12-1000 VAC or from 70-1000V AC
- Frequency
- 50 to 500 Hz
- Standard
- CAT IV 1000V; Laser: Class 3a, 630-670nm, Max Power <5mW
- Battery Life
- Laser On - 31 hr; NCV On with Visual and Audible Alerts - 25 hr
- Weight (oz)
- 1.5
- Overall Length (Inch)
- 6
- Overall Height (Inch)
- 0.96
- Overall Length (cm)
- 15.2
- Width
- 4.6000 in
- Weight
- 0.2880 lbs
Batteries2 x AAA
Drop Protection9.8' (3 m)
IncludedNCVT-5A Dual Range Non-Contact AC Voltage Tester; RT210 GFCI Receptacle Tester; Instructions; and All Required Batteries
Pollution Degree2
TypeNon-Contact AC Voltage Tester, GFCI Receptacle Tester
Overall Height (cm)2.4
Overall Width (cm)2.9
Overall Width (Inch)1.16
Weight (g)43
Height1.5000 in
Depth9.6000 in
