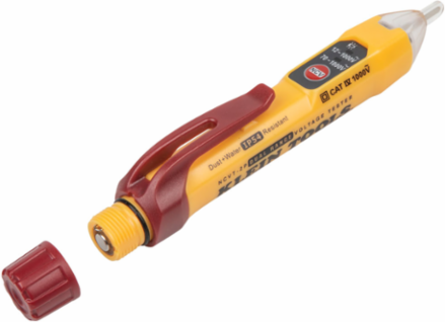

Klein Tools NCVT2PKIT Dual Range Non-Contact Voltage Tester 12-1000V AC with Receptacle Tester
- MPN: NCVT2PKIT
- UPC: 092644693274
- PPN: KLT-NCVT2PKIT
- UNSPSC: 41113637
CAD
$44.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

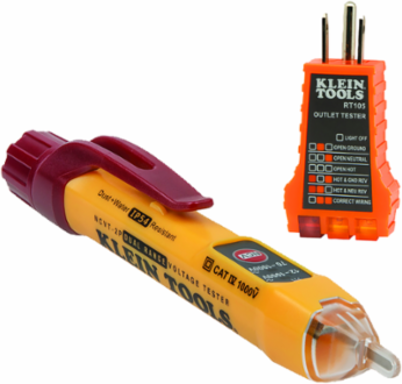

The NCVT2PKIT from Klein Tools includes a dual-range, non-contact voltage tester as well as a receptacle tester. The NCVT-2P is a non-contact voltage tester that detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The receptacle tester will troubleshoot standard 120V AC grounded outlets.
Features
- Kit contains a non-contact voltage tester and receptacle tester
- Dual range NCVT-2P automatically detects and indicates low voltage range and standard voltage (48-1000V AC)

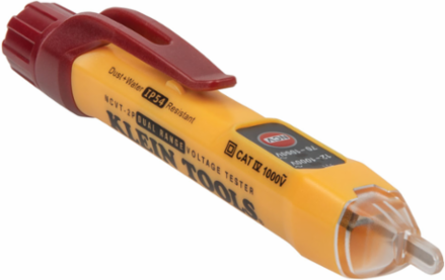

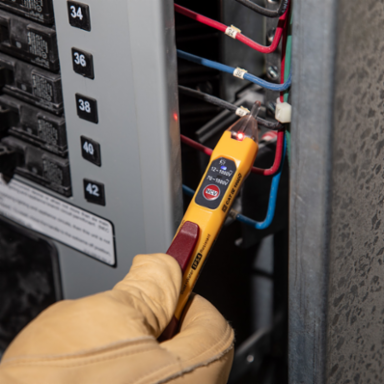

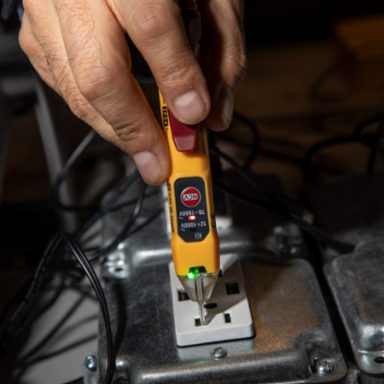

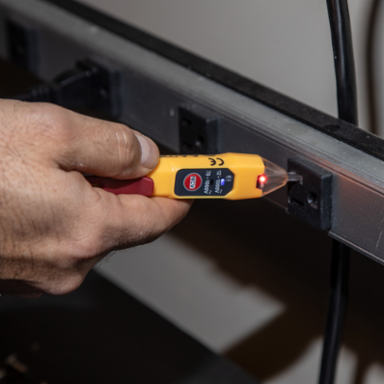

- NCVT-2P provides non-contact detection of standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, outlets and wires
- NCVT-2P is a lightweight, compact tool with pocket clip for convenient storage and quick access
- CAT IV 1000 Volt rating provides expanded operation and protection
- Screw-thread battery cap with O-ring ensures protection against dust and water ingress for the NCVT-2P

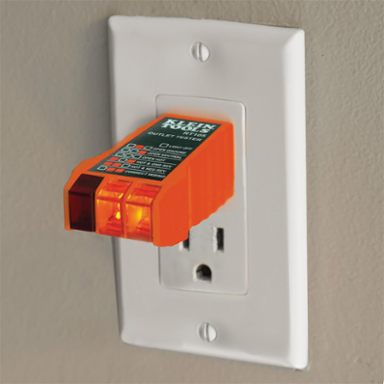

- Receptacle Tester is designed to detect the most common wiring problems in standard receptacles
- Conditions the Receptacle Tester indicates: wiring correct, open ground, reverse polarity, open hot, open neutral, hot/ground reversed

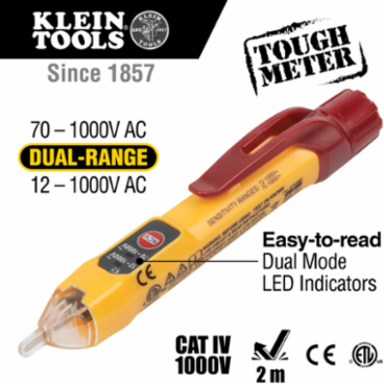

- Two Distinctive Modes on NCVT-2P: 70 to 1000V AC and 12 to 1000V AC
Documentation & Downloads
Specifications
Key Specifications
| Standard | NCVT-2P: CAT IV 1000V; RT105: CAT II 125V |
|---|---|
| Included | NCVT2P Dual Range Non-Contact Voltage Tester; RT105 Receptacle Tester; Instructions; and All Required Batteries |
| Pollution Degree | NCVT-2P - 2 |
| Material | Polycarbonate |
| Battery Life | 142 hr |
| Ingress Protection | NCVT-2P - IP54 |
| Overall Height | 2.8 cm (1.1 Inch) |
| Overall Length | 5.8 Inch (14.7 cm) |
| Width | 5.1300 in |
| Weight | 0.2990 lbs |
| Drop Protection | NCVT2P - 6.6' (2 m); RT105 - 3.3' (1 m) |
|---|---|
| Voltage | 12 - 1000V AC |
| Frequency | 50 - 500 Hz |
| Type | Dual Range for NCVT-2P |
| Batteries | 2 x AAA |
| Application | Detects and Indicates Low Voltage and Standard Voltage; Detects Most Common Wiring Problems in Standard Receptacles |
| Overall Width | 2.3 cm (0.9 Inch) |
| Height | 1.7500 in |
| Depth | 9.6300 in |
