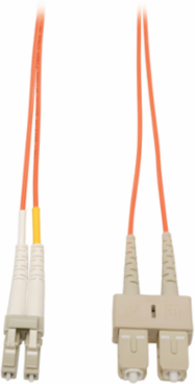

Tripp Lite N516-30M Duplex Multimode Fiber Patch Cable, 30M (100 ft), LC/SC, 50/125 Micron
- MPN: N516-30M
- UPC: 037332119544
- PPN: TRP-N516-30M
CAD
$106.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Duplex Multimode Fiber Patch Cable, 30M (100 ft), LC/SC, 50/125 Micron
Features
- Premium PVC 50/125 multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
| Network Speed | 1 Gbps |
|---|---|
| Optical Mode | OM2 |
| Core Diameter | 50 micron |
| Cable Length | 98.4 ft (1181.1 in) |
| Side B Connector Type | SC Duplex Male |
| Bandwidth | 220 MHz-km @850nm min, 600 MHz-km @1300nm min |
| Proof Test Level | 100,000 PSI |
| Primary Coating Diameter | 245 micron |
| Secondary Coating Diameter | 900 micron |
| Compliance | FDDI Rated, OFNR Rated |
| Color | Orange |
| Technology | Multimode |
|---|---|
| Number of Fibers | 2 |
| Clad Diameter | 125 micron |
| Side A Connector Type | LC Duplex Male |
| Attenuation | 3.5 dB/km @850nm max, 1.0 dB/km @1300nm max |
| Numeric Aperture | 0.275 nominal |
| Jacket Material | PVC |
| Primary Coating Material | Acrylate |
| Secondary Coating Material | PVC |
| Product Warranty Period | Lifetime limited warranty |
