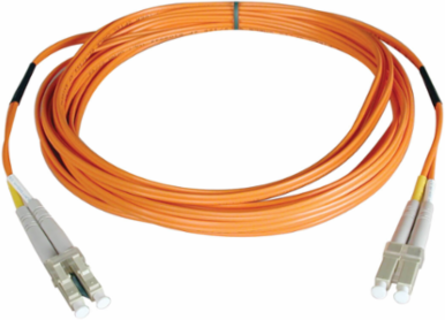

Tripp Lite N520-30M 30M Duplex Multimode Fiber Patch Cable (LC/LC), 50/125 Micron, OM2
- MPN: N520-30M
- UPC: 037332119483
- PPN: TRP-N520-30M
CAD
$72.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
30M Duplex Multimode Fiber Patch Cable (LC/LC), 50/125 Micron, OM2
Features
- Premium PVC multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth optimized for Gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
- Network Speed
- 1 Gbps
- Number of Fibers
- 2
- Bandwidth
- 220 MHz-km @850 nm, 600 MHz-km @1300 nm
- Proof Test Level
- 100,000 PSI
- Technology
- Multimode
- Core Diameter
- 50 micron
- Connector Type
- LC Duplex Male
- Secondary Coating Diameter
- 900 micron
- Primary Coating Material
- Acrylate
- Color
- Orange
- Approvals
- FDDI and OFNR rated
Optical ModeOM2
Attenuation3.5 dB/km @850 nm, 1.0 dB/km @1300 nm
Numeric Aperture0.275 nominal
Insertion Loss0.2 dB typical
Cable Length30 m (98.4 ft)
Clad Diameter125 micron
Primary Coating Diameter245 micron
Cable Jacket RatingLSZH
Secondary Coating MaterialPVC
Product Warranty PeriodLifetime limited warranty
