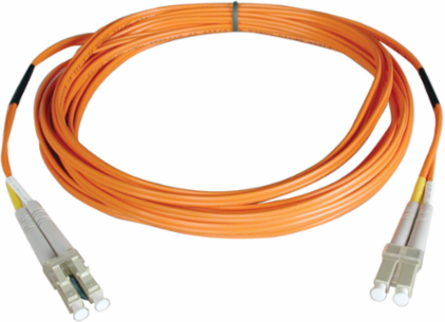

Tripp Lite N520-30M-P Duplex Multimode 50/125 Fiber Patch Cable, 30M, LC/LC, Plenum Rated
- MPN: N520-30M-P
- UPC: 037332145314
- PPN: TRP-N520-30M-P
CAD
$308.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Duplex Multimode 50/125 Fiber Patch Cable, 30M, LC/LC, Plenum Rated
Features
- Premium PLENUM multimode patch cable
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth optimized for Gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
- Cable Length
- 98.4 ft (1181.1 in.)
- Core Diameter
- 50 micron
- Number of Fibers
- 2
- Attenuation @850NM
- 3.5 dB/km max
- Bandwidth @850NM
- 220 MHz-km min
- Numeric Aperture
- 0.275 nominal
- Connector Type
- LC Duplex Male to LC Duplex Male
- Approvals
- FDDI rated, OFNR rated
- Primary Coating Material
- Acrylate
- Secondary Coating Diameter
- 900±50 microns
Network Speed1 Gbps
Clad Diameter125 micron
Optical ModeOM2
Attenuation @1300NM1.0 dB/km max
Bandwidth @1300NM600 MHz-km min
Proof Test Level100,000 PSI
Cable Jacket RatingLSZH, Plenum (CMP)
ColorOrange
Primary Coating Diameter245±15 microns
