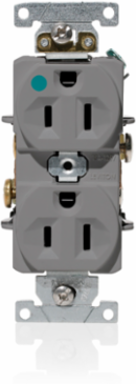

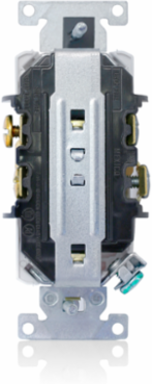

Leviton C8200-GY 15 Amp Heavy-Duty Duplex Receptacle Outlet, Self-Grounding, 125 Volt
- MPN: C8200-GY
- UPC: 078477722213
- PPN: LEV-C8200-GY
CAD
$25.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Indented Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Gray
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| Certification/Listing | cULus, NOM-ANCE |
| Applicable Standards | UL 498, Fed Spec W-C-596, CSA C22.2. No. 42 |
|---|---|
| RoHS | RoHS Compliant |
Material Specifications
| Body Material | PBT Polyester Blend |
|---|---|
| Device Type | Duplex Receptacle Outlet |
| Grade | Heavy-Duty Hospital Grade |
| Ground Contacts | 0.030" Brass |
| Line Contacts | 0.030" Phosphor Bronze |
| Strap Material | Steel |
| Terminal Screws | #8 Triple-Drive Brass |
| Color / Feature | Gray |
|---|---|
| Face Material | PBT Polyester Blend |
| Ground Clips | Brass |
| Grounding Screw | #8 hex head, triple drive Brass |
| Mounting Screws | Triple-Drive Plated Steel |
| Terminal Clamps | Brass |
Mechanical Specifications
| ANSI | C-73 |
|---|---|
| Certification/Listing | cULus, NOM-ANCE |
| RoHS | RoHS Compliant |
| Terminal ID | Brass - Hot, Green - Ground, Silver - Neutral |
| Wire Type | Stranded or Solid |
| Applicable Standards | UL 498, Fed Spec W-C-596, CSA C22.2. No. 42 |
|---|---|
| Product ID | Ratings are permanently marked on device |
| Terminal Accom. | #14 AWG - #10 AWG |
| Termination | Back or Side Wire |
AC Horsepower Rating
| Flammability | Rated V-0 per UL 94 |
|---|---|
| Operating Temperature | -40°C to 75°C |
| Horsepower Rating | 1/2 HP |
|---|
Product Features
| Color | Gray |
|---|
Warranty
| Amperage | 15 A |
|---|---|
| Grounding | Self-Grounding |
| Temperature Rise | Max 30 °C after 250 cycles OL at 200 percent rated current |
| Warranty | 10-Year Limited |
| Dielectric Voltage | Withstands 3000 V minimum |
|---|---|
| Pole | 2 |
| Voltage | 125 VAC |
| Wire | 3 |
Environmental Specifications
| Flammability | Rated V-0 per UL 94 |
|---|---|
| Product ID | Ratings are permanently marked on device |
| Terminal ID | Brass - Hot, Green - Ground, Silver - Neutral |
| Wire Type | Stranded or Solid |
| Operating Temperature | -40°C to 75°C |
|---|---|
| Terminal Accom. | #14 AWG - #10 AWG |
| Termination | Back or Side Wire |
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Dielectric Voltage | Withstands 3000 V minimum |
| Ground Clips | Brass |
| Grounding | Self-Grounding |
| Line Contacts | 0.030" Phosphor Bronze |
| Pole | 2 |
| Temperature Rise | Max 30 °C after 250 cycles OL at 200 percent rated current |
| Terminal Screws | #8 Triple-Drive Brass |
| Wire | 3 |
| Body Material | PBT Polyester Blend |
|---|---|
| Face Material | PBT Polyester Blend |
| Ground Contacts | 0.030" Brass |
| Grounding Screw | #8 hex head, triple drive Brass |
| Mounting Screws | Triple-Drive Plated Steel |
| Strap Material | Steel |
| Terminal Clamps | Brass |
| Voltage | 125 VAC |
