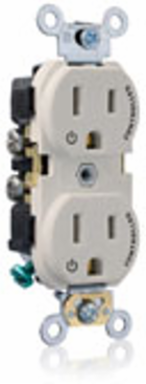

Leviton CR015-2PT 15 Amp Duplex Receptacle, Commercial Grade, NEMA 5-15R, Light Almond
- MPN: CR015-2PT
- UPC: 078477713723
- PPN: LEV-CR015-2PT
CAD
$7.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Duplex Receptacle Outlet, Commercial Specification Grade, Two Outlets Marked "Controlled", Smooth Face, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Light Almond
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NOM
- 057
- UL Fed Spec WC-596
- File E13399
CSA C22.2 No. 42File 152105
UL 498File E13399
Warranty10-Year Limited
Material Specifications
- Body Material
- Nylon
- Face Material
- Nylon
- Grounding Screw
- Steel 8-32
- Strap Material
- Zinc-Plated Steel
ColorLight Almond
Ground ClipsBrass-Plated
Line ContactsBrass Double Wipe .031 Thick
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.14-10 AWG
TerminationSide Wire
Product Features
- Device Type
- Duplex Receptacle Outlet
- Grade
- Commercial Specification Grade
FeatureSmooth Face
NEMA5-15R
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-45°C to 80°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
Wire3
AC Horsepower Ratings
- AC Horsepower Ratings
- 1/2 HP
Screw Terminal Torque14-18 in-lbs
