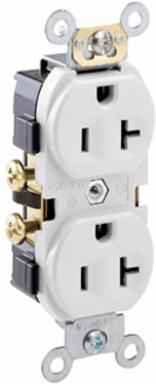

Leviton CR20-W 20 Amp Commercial Grade Duplex Receptacle, Self-Grounding, NEMA 5-20R, 125 Volt
- MPN: CR20-W
- UPC: 078477815458
- PPN: LEV-CR20-W
CAD
$3.12
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Duplex Receptacle Outlet, Commercial Specification Grade, Indented Face, 20 Amp, 125 Volt, Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White
Documentation & Downloads
Specifications
Additional
| Amperage | 20 A |
|---|---|
| At Rated Voltage | 1 HP |
| Wire | 3 |
| Grade | Commercial Specification Grade |
| Dielectric Voltage | 2000 V per UL498 |
| Face Style | Indented |
| Screw Terminal Torque | 14-18 in-lbs |
| Terminal Accom. | 14-10 AWG |
| Material | Thermoplastic, Brass, Steel, Zinc-Plated Steel |
| Grounding Screw | Steel 8-32 |
| Face Material | Thermoplastic |
| Terminal Screws | Steel 8-32 |
| Line Contacts | Brass .031 Thick |
| RoHS Compliant | False |
| Voltage | 125 VAC |
|---|---|
| Pole | 2 |
| Grounding | Self-Grounding |
| Temperature Range | -40b0C to 60b0C |
| Current Limiting | Full Rated Current |
| Termination | Side Wire |
| Temperature Rise | Max 30C after 100 cycles OL at 150% rated current |
| Device Type | Duplex Receptacle Outlet |
| Ground Clips | Brass |
| Strap Material | Zinc-Plated Steel |
| Body Material | Thermoplastic |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Standards | ANSI C-73, CSA C22.2 No. 42 File 152105, NEMA WD-1 & WD-6, NOM 057, UL498 File E13399 |
| Color | White |
