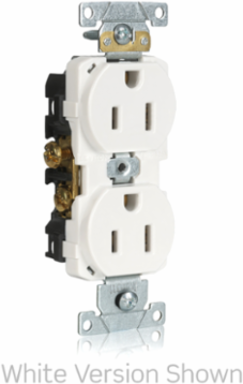

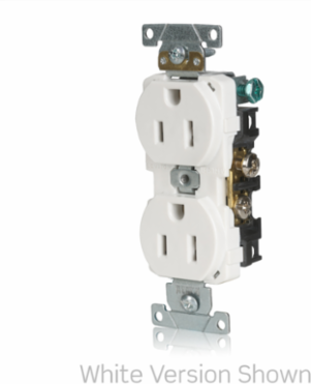

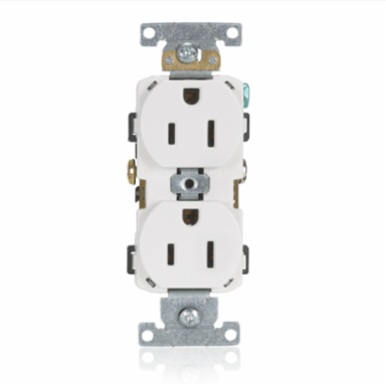

Leviton CR015-W 15 Amp Commercial Grade Duplex Receptacle, Self-Grounding, NEMA 5-15R
- MPN: CR015-W
- UPC: 078477815243
- PPN: LEV-CR015-W
CAD
$2.89
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Duplex Receptacle Outlet, Commercial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White
Features
- Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Current Limiting
- Full Rated Current
- Pole
- 2
- Terminal Accommodation
- 14-10 AWG
- Device Type
- Duplex Receptacle Outlet
- Face
- Smooth
- NEMA
- 5-15R
- Operating Temperature
- -40°C to 60°C
- Dielectric Voltage
- 2000 V per UL498
- Standards
- ANSI C-73, UL 498, Fed Spec W-C-595G, CSA C22.2 No. 42, NOM 057
- UL498
- File E13399
- NOM
- 057
- Country of Origin
- Please Contact Customer Service
Voltage125 VAC
AC Horsepower Rating1/2 HP at rated voltage
Wire3
GradeCommercial Specification Grade
Face MaterialNylon
GroundingSelf-Grounding
MaterialPolypropylene, Nylon, Brass, Steel, Zinc-Plated Steel
Flammability RatingV-2 per UL94
Screw Terminal Torque14-18 in-lbs
CSA C22.2 No. 42File 152105
ANSIC-73
RoHS CompliantTrue
