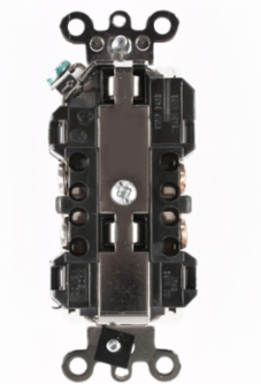

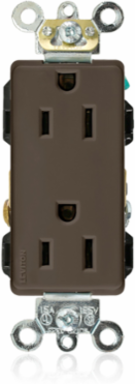

Leviton 16262 Decora Plus 15 Amp Duplex Receptacle Outlet, Industrial Grade, Self-Grounding, Brown
- MPN: 16262
- UPC: 078477819401
- PPN: LEV-16262
CAD
$25.14
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Brown
Features
- Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL498
- File E13399
CSA C22.2 No. 42File 152105
NOM057
Warranty10-Year Limited
Material Specifications
- Body Material
- Thermoplastic Nylon
- Color
- Brown
- Ground Clips
- Brass-Plated
- Line Contacts
- Brass Triple-Wipe .031 Thick
- Terminal Screws
- Brass 10-32
Clamp NutsZinc-Plated Steel
Face MaterialThermoplastic Nylon
Grounding ScrewBrass 8-32
Strap MaterialZinc-Plated Steel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Product Features
- Brand
- Decora Plus
- Feature 4
- Smooth Face
Device TypeDuplex Receptacle Outlet
GradeHeavy-Duty Industrial Specification Grade
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C at 250 cycles OL at 200 pct rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1/2 HP
