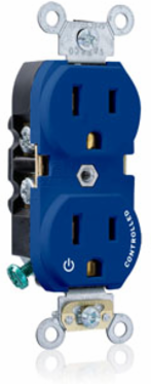

Leviton 5262-S1B Heavy-Duty Duplex Receptacle Outlet, 15 Amp, 125 Volt, NEMA 5-15R, Blue
- MPN: 5262-S1B
- UPC: 078477711552
- PPN: LEV-5262-S1B
CAD
$33.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Leviton offers custom imprinting solutions to meet the 2014 National Electrical Code requirements for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. All 15A & 20A, 125V receptacles that are automatically controlled will be marked with a specific symbol.
Documentation & Downloads
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
Certification/ListingUL, CSA, NOM-ANCE
Applicable StandardsUL 498, CSA C22.2 No. 42, FedSpec W-C 596
Material Specifications
- Ground Clips
- Brass
- Face Material
- Nylon
- Strap Material
- Brass .050"
- Body Material
- Nylon
Line ContactsTriple-Wipe .040" High Performance Brass Alloy
Terminal ScrewsBrass 10-32
Grounding ScrewBrass 8-32
Terminal ClampZinc-Plated Steel
Mechanical Specifications
- Wire Type
- Solid or Stranded Building Wire
- Product ID
- Ratings are permanently marked on device
- Termination
- Back or Side Wire
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.14-10 AWG
Product Features
- NEMA
- 5-15R
- Country Of Origin
- Mexico
- Feature
- Split-circuit, One Outlet Marked Controlled, Smooth Face
ColorBlue
GradeHeavy-Duty Industrial Specification Grade
Device TypeDuplex Receptacle Outlet
Warranty
- Warranty
- 10-Year Limited
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 75°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Grounding
- Self-Grounding
Wire3
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Voltage125 VAC
AC Horsepower Ratings
- At Rated Voltage
- 1/2 HP
