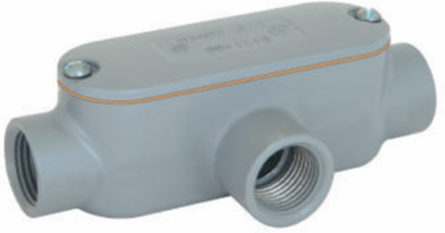

Killark EAT-9CG Aluminum Conduit Body with Cover & Gasket, T Type, Hub Size 3-1/2 Inch, 17.5 x 6.5 x 5.5 Inch
Killark EAT-9CG Aluminum Conduit Body with Cover & Gasket, T Type, Hub Size 3-1/2 Inch, 17.5 x 6.5 x 5.5 Inch
- MPN: EAT-9CG
- UPC: 783936075303
- PPN: HBL-EAT-9CG
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1376.86/ EA
Description
E Series - Aluminum Conduit Body with Cover And Gasket - T Type - Hubsize 3-1/2 Inch
Features
- Flat back design for easy mounting close to walls
- Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish
- May be used on aluminum or steel conduit
- Lightweight, makes installation simple
- Ideal for commercial and light industrial applications
- Furnished with cover and gasket
- Assembled with cover and gasket to speed installation - installer has all components needed. Flat back design for easy mounting close to walls. Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish. May be used on alumi
Specifications
Specifications
- Country of Origin
- IN
- Each - Width
- 6.500 in
- Color
- Gray
- Hub Size
- 3-1/2"
- Special Features
- Assembled with cover and gasket to speed installation - installer has all components needed. Flat back design for easy mounting close to walls. Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish. May be used on alumi
- Width
- 6.5 in
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 12.12
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- BOX SIZE
- 5.500x17.500x6.500 (in)
- Carton - Total Units
- 1 EA
Dimensions17.5 in x 6.5 in x 5.5 in
ApplicationFor use on threaded rigid/IMC conduit. Use conduit outlet bodies for connecting conduit sections, for making bends in conduit runs, as pull outlets, or to provide openings for making splices and taps in conductors.
Height5.5 in
Length17.5 in
TypeConduit Body With Cover & Gasket
ARRA CompliantContact Manufacturer
Description - InvoiceBODY, CVR, GASK, 3-1/2" T ALUM
Harmonization Code7609000000
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD30D230
Hub PatternT
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936075303
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
