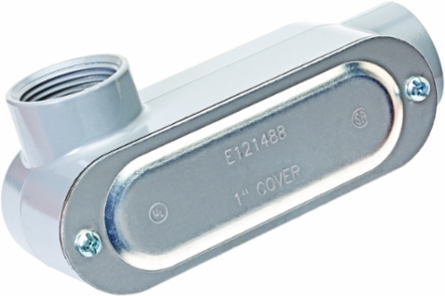

Killark EALL-5CGN E Series Aluminum Fitting 1-1/2 Inch LL Type with Cover & Gasket - 2 Pack
Killark EALL-5CGN E Series Aluminum Fitting 1-1/2 Inch LL Type with Cover & Gasket - 2 Pack
- MPN: EALL-5CGN
- UPC: 783936108735
- PPN: HBL-EALL-5CGN
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$173.17/ EA
Description
E Series Fitting, Aluminum, E-Pak 1-1/2" LL Type - Cover and Gasket - 2/Pack
Features
- Flat back design for easy mounting close to walls
- Cast of high strength, corrosion and weather resistant aluminum alloy with painted finish
- May be used on aluminum or steel conduit
- Lightweight, makes installation simple
- Ideal for commercial and light industrial applications
- Killark’s E series conduits are compact and light for easy installation. The E series is available for EMT/IMC conduit and is offered in aluminum with electro-statically applied powder coat paint. This series is optioned with combo, cover and gasket or is available just as a conduit body.
Specifications
Specifications
- Country of Origin
- IN
- Each - Width
- 2.500 in
- Special Features
- Killark’s E series conduits are compact and light for easy installation. The E series is available for EMT/IMC conduit and is offered in aluminum with electro-statically applied powder coat paint. This series is optioned with combo, cover and gasket or is available just as a conduit body.
- Cover Type
- Stamped
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- Sub Class Code
- D30D230
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.380 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 2
Width2.500 in
Hub Size1-1/2"
TypeConduit Body With Cover & Gasket
ARRA CompliantContact Manufacturer
Description - InvoiceE-PAK 1-1/2" LL N GSKT S CVR 2 PER
Harmonization Code7609000000
MSDS FlagNo
Hub PatternLL
SeriesE Series
BOX SIZE8.500x13.000x4.250 (in)
Carton - Number of Sub Packs2
Carton - SCC-14 Next Lower Level Sub Pack00783936108735
Certifications
- EU RoHS Indicator
- Contact Manufacturer
