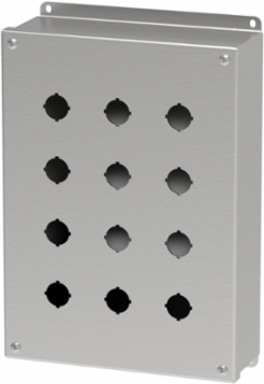

nVent Hoffman E12PBGSS Pushbutton Screw Cover Type 4X, 12PBx22.5mm, SS304
- MPN: E12PBGSS
- UPC: 783510101534
- PPN: HOF-E12PBGSS
- UNSPSC: 39121326
CAD
$1205.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This stainless steel enclosure is pre-punched for easy installation of 30.5mm or 22.5mm components. This Pushbutton Screw Cover Type 4X, E12PBGSS item measures 12PBx22.5mm with a material of SS304.
Features
- Prepunched 30.5mm or 22.5mm holes
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on door; grounding nut on body
- 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
- Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- Oil-resistant gasket
Documentation & Downloads
Specifications
Additional
- NEMA Rating
- NEMA Type 4X Watertight, corrosion-resistant
- Hole Size
- 22.5 mm
- Overall Dimensions (L x W)
- 324 x 221 mm
- Depth (D)
- 76 mm
- Width (W)
- 216 mm
- Weight
- 7.2lb
- Finish
- Brushed #4
- Seam
- Continuously welded and ground smooth
- Bonding Provision
- On door
- Pushbutton Hole Configuration
- 4-way, oil-tight compatibility
- Product Family
- PushButton
IP RatingIP66
Hole Quantity12
Mounting (G x H)311 x 194 mm
Height (H)298 mm
Thickness (T)1.98 mm
MaterialType 304 Stainless Steel
Construction14 gauge body, 16 gauge cover
Cover ScrewCaptivated, threads into sealed wells
Grounding NutOn body
GasketOil-resistant
