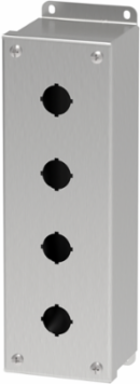

nVent Hoffman E4PBSS Pushbutton Screw Cover Type 4X, 4PBx30.5mm, SS304
- MPN: E4PBSS
- UPC: 783510596408
- PPN: HOF-E4PBSS
- UNSPSC: 39121326
CAD
$644.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This stainless steel enclosure is pre-punched for easy installation of 30.5mm or 22.5mm components. This Pushbutton Screw Cover Type 4X, E4PBSS item measures 4PBx30.5mm with a material of SS304.
Features
- Prepunched 30.5mm or 22.5mm holes
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on door; grounding nut on body
- 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
- Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- Oil-resistant gasket
Documentation & Downloads
Specifications
Additional
| NEMA Rating | 4X Watertight, corrosion-resistant |
|---|---|
| Thickness | 14 ga |
| Number of Holes | 4 |
| Depth | 2.75 in |
| Height | 254 mm |
| Size | 4PB x 30.5 mm |
| Material | Type 304 Stainless Steel |
| Seams | Continuously welded and ground smooth |
| Cover Screw Type | Captivated, threads into sealed wells |
| Bonding | Door provision with grounding nut on body |
| IP Rating | IP66 |
|---|---|
| Hole Size | 1.2 in |
| Width | 3.25 in |
| Mounting | 10.75 x 2.38 in; 273 x 60 mm |
| Overall Dimensions | 11.25 x 3.47 in; 286 x 88 mm |
| Weight | 3.2 kg |
| Finish | #4 Brushed |
| Gasket | Oil-resistant |
| Hinge | Internal detachable hinge for multiple columns |
