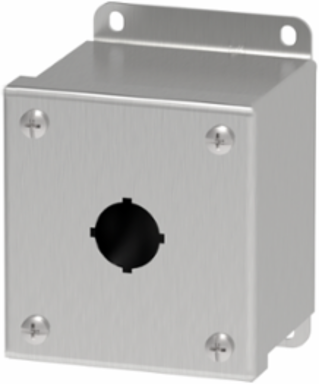

nVent Hoffman E1PBGSS Pushbutton Screw Cover Type 4X, 1PBx22.5mm, SS304
- MPN: E1PBGSS
- UPC: 783510593902
- PPN: HOF-E1PBGSS
- UNSPSC: 39121326
CAD
$415.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This stainless steel enclosure is pre-punched for easy installation of 30.5mm or 22.5mm components. This Pushbutton Screw Cover Type 4X, E1PBGSS item measures 1PBx22.5mm with a material of SS304.
Features
- Prepunched 30.5mm or 22.5mm holes
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on door; grounding nut on body
- 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
- Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- Oil-resistant gasket
Documentation & Downloads
Specifications
Additional
- NEMA Rating
- 4X Watertight, corrosion-resistant
- Protection Rating
- NEMA Type 12
- Thickness (T)
- 1.98 mm
- Height (H)
- 89 mm
- Overall Dimensions (L x W)
- 114 x 88 mm
- Hole Quantity
- 1
- Size
- 1PB x 22.5 mm
- Mounting (G x H)
- 102 x 60 mm
- Cover Screw Type
- Captivated, thread into sealed wells
- Gasket Material
- Oil-resistant
- Pushbutton Hole Configuration
- 4-way
- Type
- 4X
IP RatingIP66
MaterialType 304 Stainless Steel
Width (W)108 mm
Depth (D)70 mm
Hole Size (HS)22.5 mm
Number of Holes1
Weight1.48
FinishBrushed #4
SeamsContinuously welded, ground smooth
Bonding ProvisionOn door; grounding nut on body
Gauge16
