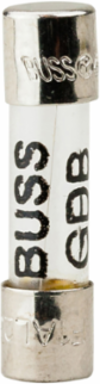

Bussmann GDB-5A Fast-Acting Glass Fuse 5A 250 Vac 0.25 Inch x 0.197 Inch
- MPN: GDB-5A
- UPC: 051712431835
- PPN: BUS-GDB-5A
CAD
$3.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Fast-Acting Glass Fuse from Bussmann is engineered to provide crucial protection for electronic circuits, ensuring safety and reliability in power distribution applications. With a current rating of 5A and capable of operating at a voltage of up to 250 Vac or 32 Vdc, this small but effective fuse is ideal for a variety of electronic devices. Its robust glass tube design features silver-plated end caps, allowing for efficient connectivity through ferrule ends, while maintaining minimal voltage drop and ensuring high performance. Designed with a maximum interrupt rating of 50 AIC at 250 Vac, this fuse is a dependable choice for those looking to safeguard their electronic components against overcurrent conditions.
Features
- Rated for 5 Amps at up to 250 Vac (and self-certified for up to 32 Vdc), this fuse provides dependable, calibrated overcurrent protection for demanding setups. It prevents costly component failures by clean-breaking power the moment a harmful current spike occurs.
- Featuring a precision engineered 5.2 mm x 20 mm cartridge dimension with ferrule ends, this small-dimension fuse drops perfectly into industrial fuse holders, blocks, or clips. It ensures a tight, vibration-resistant fit that eliminates intermittent contact issues in compact electronic enclosures.
- Constructed with a highly stable glass body and nickel-plated brass endcaps, this non-indicating fuse offers low DC cold resistance and a minimal 120 mV voltage drop. The durable outer tube prevents physical fracturing during a blow, while the nickel plating eliminates terminal oxidation over long operational lifespans.
- Carrying major global recognitions including cURus, VDE, CE, and CCC markings, this Eaton Bussmann series component satisfies rigid regulatory compliance criteria. It minimizes safety liabilities and ensures your control panels, test equipment, and commercial appliances pass thorough electrical engineering inspections.
Documentation & Downloads
Specifications
Additional
- Amperage
- 5A
- Interrupt Rating
- 50 AIC at 250 Vac
- Voltage Drop
- 120 mV maximum
- Diameter
- 5.2 mm
- Type
- Small dimension, European (IEC)
- Material
- Glass tube, nickel-plated end caps
- Fuse Indicator
- Non-indicating
Voltage Rating250 Vac or less, 32 Vdc (self certified)
Frequency Rating50 Hz
Height20 mm
Weight0.83 g
ConnectionFerrule end x ferrule end
ApplicationElectronic circuits
