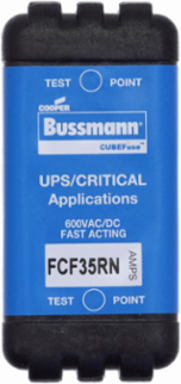

Eaton Bussmann series FCF fuse, 35 A, 60 Hz, 50 Hz, 1 , CF, Black, Non-indicating, Electroless tin plated copper alloy terminal, Blade end,Class CF, 6 min at 200%, 300 kAIC at 600 V,50 kAIC at 600 Vdc, Glass filled PES, 600 V, 600 Vdc

Documentation & Downloads

Bussmann FCF35RN Eaton Bussmann series FCF fuse, 35 A, 60 Hz, 50 Hz, 1 , CF, Black, Non-indicating, Electroless tin plated copper alloy terminal, Blade end,Class CF, 6 min at 200%, 300 kAIC at 600 V,50 kAIC at 600 Vdc, Glass filled PES, 600 V, 600 Vdc

MPN: FCF35RN
UPC: 051712362498
PPN: BUS-FCF35RN

CAD

$73.55

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Eaton Bussmann series FCF fuse, 35 A, 60 Hz, 50 Hz, 1 , CF, Black, Non-indicating, Electroless tin plated copper alloy terminal, Blade end,Class CF, 6 min at 200%, 300 kAIC at 600 V,50 kAIC at 600 Vdc, Glass filled PES, 600 V, 600 Vdc

Documentation & Downloads

Specifications

Electrical Rating

Amperage Rating: 35 A

Frequency rating - min: 50 Hz

Response time: 6 min at 200%

Frequency rating - max60 Hz

Interrupt rating300 kAIC at 600 Vac

Voltage rating600 Vac, 600 Vdc

General

UPC: 051712362498

Product Height: 1.9 in

Product Weight: .17 lb

Compliances: CE Marked

Product Length/Depth1.88 in

Product Width1 in

WarrantyNot Applicable

CertificationsUL Listed

Physical Details

Color: Black

Material: Glass filled PES

Operating Temperature: -40° to 80°C

Terminal material: Electroless tin plated copper alloy terminal

Fuse typeClass CF

Number of elements1

Packaging typeStandard

General Information

Class: Class CF

Fuse indicator: Non-indicating

Used with: TCFH60N, CCP2-3-60CF

ConnectionBlade end

Special featuresFinger safe
