Bussman

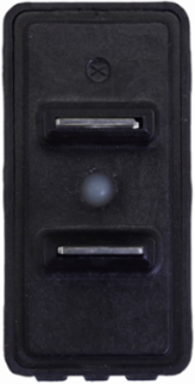

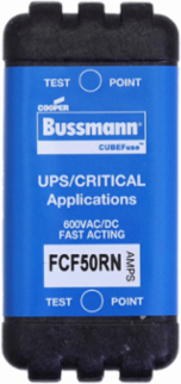

Bussman FCF50RN Eaton Bussmann series FCF fuse, 50 A, 60 Hz, 50 Hz, 1 , CF, Black, Non-indicating, Electroless tin plated copper alloy terminal, Blade end, 6 min at 200%, 300 kAIC at 600 V,50 kAIC at 600 Vdc, Glass filled PES, 600 V, 600 Vdc

Eaton Bussmann series FCF fuse, 50 A, 60 Hz, 50 Hz, 1 , CF, Black, Non-indicating, Electroless tin plated copper alloy terminal, Blade end, 6 min at 200%, 300 kAIC at 600 V,50 kAIC at 600 Vdc, Glass filled PES, 600 V, 600 Vdc
Eaton Bussmann series FCF fuse, 50 A, 60 Hz, 50 Hz, 1 , CF, Black, Non-indicating, Electroless tin plated copper alloy terminal, Blade end, 6 min at 200%, 300 kAIC at 600 V,50 kAIC at 600 Vdc, Glass filled PES, 600 V, 600 Vdc
  • MPN: FCF50RN
  • UPC: 051712362528
  • PPN: BUS-FCF50RN

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$147.08/ EA

Specifications

Physical Details

Color
Black
Material
Glass filled PES
Operating Temperature
-40° to 80°C
Terminal material
Electroless tin plated copper alloy terminal
Fuse typeClass CF
Number of elements1
Packaging typeStandard

General Information

Class
Class CF
Fuse indicator
Non-indicating
Used with
TCFH60N, CCP2-3-60CF
ConnectionBlade end
Special featuresFinger safe

General

UPC
051712362528
Product Height
1.9 in
Product Weight
.17 lb
Compliances
CE Marked
Product Length/Depth2.13 in
Product Width1 in
WarrantyNot Applicable
CertificationsUL Listed

Electrical Rating

Amperage Rating
50 A
Frequency rating - min
50 Hz
Response time
6 min at 200%
Frequency rating - max60 Hz
Interrupt rating300 kAIC at 600 Vac
Voltage rating600 Vac, 600 Vdc
