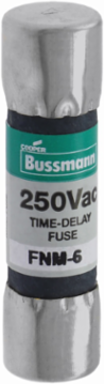

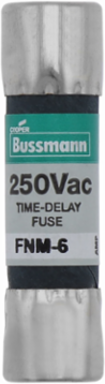

Bussmann FNM-6 Eaton Bussmann series FNM fuse, Time-delay Midget fuse, 6 A, Dual, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 125 Vac,200 AIC at 250 Vac, Nickel-plated bronze endcap, Standard, 250 V
- MPN: FNM-6
- UPC: 051712520607
- PPN: BUS-FNM-6
CAD
$9.02
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Eaton Bussmann series FNM fuse, Time-delay Midget fuse, 6 A, Dual, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 125 Vac,200 AIC at 250 Vac, Nickel-plated bronze endcap, Standard, 250 V
Features
- The Eaton Bussmann FNM-6 features built-in dual-element time-delay (slow-blow) technology specifically engineered to tolerate harmless, temporary inductive current surges. This prevents frustrating, unnecessary nuisance tripping during inductive equipment startup while still providing critical, precise overcurrent protection if a sustained overload condition occurs.
- This supplemental cartridge fuse is designed to the industry-standard 5AG midget physical dimensions, measuring exactly 13/32-inch by 1-1/2-inch (10.3mm x 38.1mm). Featuring high-conductivity, nickel-plated bronze ferrule endcaps, it ensures a tight, seamless mechanical fit and excellent electrical contact in standard panel-mount fuse blocks, clips, and inline midget fuse holders

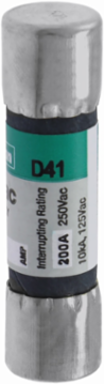

- Rated for a maximum of 6 Amps at 250 VAC, this low-voltage supplemental fuse carries a robust interrupting rating (AIC) of 200 Amps at 250 VAC and scales up to 10,000 Amps at 125 VAC. This versatile electrical threshold makes it the ideal safety component for protecting localized circuits without risking catastrophic housing failure under maximum fault currents.

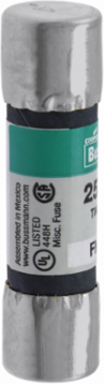

- The Bussmann FNM-6 completely eliminates specification guesswork by carrying full industry-standard certifications, including UL Listed guide JDYX2 (File E19180) and CSA Certified class 1422-01 (File 53787), while also being CE marked. These rigorous approvals guarantee total compliance with strict commercial safety codes and national electrical standards during routine system audits.
Documentation & Downloads
Specifications
Additional
- Amperage Rating
- 6 A
- Interrupt Rating
- 10 kA at 125 Vac, 200 A at 250 Vac
- Product Length/Depth
- 1.5 in
- Product Height
- .41 in
- Connection
- Ferrule end x ferrule end
- Fuse Type
- Time-delay Midget
- Construction
- Melamine tube
Voltage Rating250 V
Number of ElementsDual
Product Width.41 in
Product Weight.2 lb
MaterialNickel-plated bronze endcap
Fuse IndicatorNon-indicating
CompliancesCE Marked, UL Listed, CSA Certified, RoHS compliant
