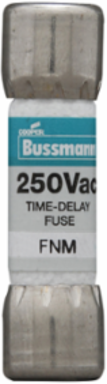

Bussmann FNM-1/2 Time Delay Midget Fuse 250V 0.50A 1.44 Inch Height
- MPN: FNM-1/2
- UPC: 051712520058
- PPN: BUS-FNM-1/2
CAD
$8.77
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Eaton Bussmann series FNM fuse, Time-delay, 0.5 A, Dual, Non-indicating, Ferrule end x ferrule end, 35 AIC at 250 Vac, 10 kAIC at 125 Vac, Nickel-plated bronze endcap, Standard, 250 V
Features
- The advanced dual-element, slow-blow engineering allows the fuse to withstand harmless, short-duration high inrush currents typical of inductive loads. This ensures your systems stay up and running without unnecessary downtime, while still providing rapid, precise interruption during sustained overloads or short circuits.
- Rated for up to 250 VAC with a 0.5 Amp (500 mA) current capacity, this fuse features an exceptional interrupting rating of 35 kAIC at 250 Vac and 10 kAIC at 125 Vac. It effectively isolates high-energy faults in lower-voltage control environments, safely protecting sensitive downstream components from catastrophic electrical failure.
- Constructed with a heavy-duty melamine housing and nickel-plated bronze endcaps, this non-indicating fuse delivers superior structural integrity, arc-quenching capability, and exceptional cycling endurance. It resists thermal shock and environmental degradation, guaranteeing reliable supplemental protection inside demanding factory floor enclosures and control panels.
- Fully CE marked, this RoHS-compliant fuse fulfills all mandatory regulatory safety benchmarks for supplemental circuit protection. You can confidently install it in commercial lighting circuits, meter loops, and general-purpose industrial control layouts, knowing it passes rigorous electrical safety audits.
Documentation & Downloads
Specifications
Additional
- Amperage
- 0.50A
- Type
- Time delay midget
- Length
- 1.5 in
- Width
- 0.41 in
- Number Of Elements
- Dual
- Connection
- Ferrule end X ferrule end
Voltage250V
Interrupt Rating35 AIC at 250 Vac, 10 kAIC at 125 Vac
Height0.41 in
Weight0.2 lb
MaterialNickel-plated bronze endcap
Fuse IndicatorNon Indicating
