Bussman

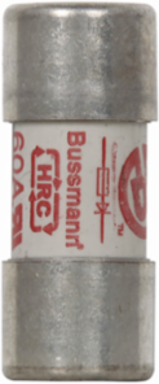

Bussman FWA-60A21F High Speed Fuse 60A 500 Vac/dc 100 kAIC Ferrule end X Ferrule end

High Speed Fuse 60A 500 Vac/dc 100 kAIC Ferrule end X Ferrule end
  • MPN: FWA-60A21F
  • UPC: 051712795296
  • PPN: BUS-FWA-60A21F

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$63.35/ EA

Specifications

Specifications

Fuse Indicator
Non Indicating
Construction Size
Other
Connection
Ferrule end X ferrule end
Amperage Rating
60A
Utilization category
aR (accompanied semiconductor protection)
Type
High speed fuse
Breaking Capacity
200 A
With Striker
No
Pre Arc (I2T)
250
Application
DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Voltage Type
AC/DC
Interrupt Rating100 kAIC
Clearing (I2T)Clearing at 150V: 2400
Release CharacteristicOther
Frequency Rating Maximum62 HZ
Watt Losses8W
Fuse Shapecylindrical
Amperage Rating Numeric60 A
Frequency Rating Minimum45 HZ
Voltage Rating500 Vac/dc (35-800A only)
Voltage Rating Numeric150 V
Packaging TypeStandard

General

UPC
051712795296
Product Length/Depth
51 MM
Product Width
21 MM
Warranty
Not Applicable
Certifications
CSA Certified
EAN5027590499309
Product Height21 MM
Product Weight55.3 G
CompliancesCE Marked
