Bussmann

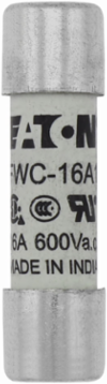

Bussmann FWC-16A10F Eaton Bussmann series FWC high speed cylindrical fuse, 700 Vac, 700 Vdc (UL), 16A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic

Eaton Bussmann series FWC high speed cylindrical fuse, 700 Vac, 700 Vdc (UL), 16A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
  • MPN: FWC-16A10F
  • UPC: 051712796453
  • PPN: BUS-FWC-16A10F

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$28.05/ EA

Description

Eaton Bussmann series FWC high speed cylindrical fuse, 700 Vac, 700 Vdc (UL), 16A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic

Specifications

General

UPC
051712796453
Product Length/Depth
38 mm
Product Width
11 mm
Warranty
Not Applicable
Certifications
CSA Certified
EAN5027590499330
Product Height11 mm
Product Weight8.8 g
CompliancesCE Marked

Specifications

Interrupt rating
50 kAIC at 300 Vdc
Amperage Rating
16 A
Fuse size
10 X 38 mm
Fuse indicator
Non Indicating
Clearing (I2T)
150
Connection
Ferrule end x ferrule end
Material
Ceramic
Watt losses
3.5 W
Fuse shape
Cylindrical
Breaking capacity
200 A
Class
Class aR
Application
DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Packaging type
Standard
Release characteristicOther
Frequency rating - max62 Hz
Voltage rating600 V
Construction size10 mm x 38 mm
ColorWhite
Quantity10
Utilization categoryaR (accompanied semiconductor protection)
TypeHigh speed fuse
Used withFinger safe holders/blocks and striker
Frequency rating - min45 Hz
Pre arc (I2T)25
Voltage typeAC/DC
