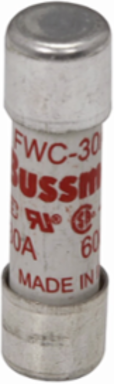

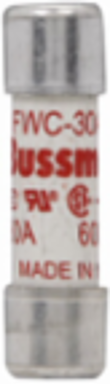

Bussmann FWC-32A10F Eaton Bussmann series FWC high speed cylindrical fuse, 600V (UL), 32A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic

Eaton Bussmann series FWC high speed cylindrical fuse, 600V (UL), 32A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
Eaton Bussmann series FWC high speed cylindrical fuse, 600V (UL), 32A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
  • MPN: FWC-32A10F
  • UPC: 051712796484
  • PPN: BUS-FWC-32A10F

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$28.95/ EA

Description

Eaton Bussmann series FWC high speed cylindrical fuse, 600V (UL), 32A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic

Specifications

Specifications

Interrupt Rating
200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc
Amperage Rating
32A
Amperage Rating Numeric
32 A
With Striker
No
Diameter
10 MM
Construction Size
10 x 38 mm
Color
White
Quantity
10
Utilization category
aR (accompanied semiconductor protection)
Type
High speed fuse
Fuse Shape
cylindrical
Frequency Rating Minimum
45 HZ
Pre Arc (I2T)
95
Voltage Rating Numeric
600 V
Packaging Type
Standard
Release CharacteristicOther
Frequency Rating Maximum62 HZ
Fuse Size10 X 38 mm
Voltage Rating600V (UL)
Fuse IndicatorNon Indicating
Clearing (I2T)600
ConnectionFerrule end X ferrule end
Material TypeCeramic
Watt Losses7.5
Used WithFinger safe holders/blocks and striker
Breaking Capacity200 A
ClassClass aR
ApplicationDC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Voltage TypeAC

General

UPC
051712796484
Product Length/Depth
38 MM
Product Width
10 MM
Warranty
Not Applicable
Certifications
CSA Certified
EAN5027590420525
Product Height10 MM
Product Weight9.4 G
CompliancesCE Marked
