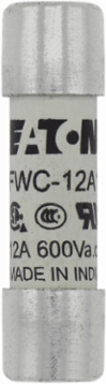

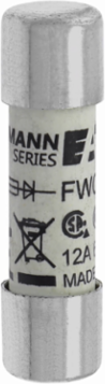

Bussmann FWC-12A10F High Speed Cylindrical Fuse 12A, 600V, 200 kAIC AC/DC, Ferrule End
- MPN: FWC-12A10F
- UPC: 051712796446
- PPN: BUS-FWC-12A10F
CAD
$28.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
High Speed Cylindrical Fuse 12A, 600V, 200 kAIC AC/DC, Ferrule End
Features
- Engineered to standard 10 times 38 mm (13/32 in times 1-1/2 in) midget dimensions, this ferrule fuse drops seamlessly into existing modular fuse holders, finger-safe blocks, and disconnect switches. This universal footprint allows industrial maintenance electricians to upgrade to premium semiconductor protection without replacing costly mounting hardware or modifying panel layouts.
- Utilizing a specialized fast-acting clearing profile, this high-speed fuse is custom-engineered to isolate faults before they can damage delicate power electronics. It delivers low $I^2t$ let-through energy to shield high-value components—such as variable speed drives (VFDs), power rectifiers, thyristor modules, and UPS systems—from catastrophic thermal breakdown during short-circuit events.
- Boasting an exceptional 600V AC/DC electrical rating paired with a 200kA AC (50kA DC) interrupting capacity, this fuse safely quenches massive fault currents in demanding automation environments. This robust voltage threshold makes it an ideal choice for heavy industrial machinery, solar inverters, and commercial motor control circuits where high-energy arcs must be instantly suppressed.
- Carrying official UL Recognized (File E91958) and CE markings, this semiconductor fuse guarantees strict compliance with both North American and European electrical standards. This dual certification simplifies international equipment design engineering, ensuring your automated machinery panels easily pass rigorous field inspections anywhere in the world.
Documentation & Downloads
Specifications
Key Specifications
- Fuse indicator
- Non Indicating
- Construction size
- 10 mm x 38 mm
- Connection
- Ferrule end x ferrule end
- Amperage Rating
- 12 A
- Utilization category
- aR (accompanied semiconductor protection)
- Type
- High speed fuse
- Breaking capacity
- 200 A
- Pre arc (I2T)
- 15
- Application
- DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
- Packaging type
- Standard
Interrupt rating200 kAIC Vac
Clearing (I2T)120
Release characteristicOther
Frequency rating - max62 Hz
Watt losses3 W
Fuse shapeCylindrical
Frequency rating - min45 Hz
Voltage rating600 V
Voltage typeAC/DC
General
- UPC
- 051712796446
- Product Length/Depth
- 38 mm
- Product Width
- 11 mm
- Warranty
- Not Applicable
- Certifications
- CSA Certified
EAN5027590499323
Product Height11 mm
Product Weight8.8 g
CompliancesCE Marked
