Bussmann

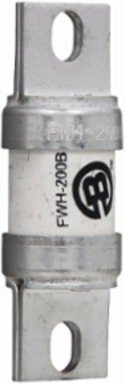

Bussmann FWH-125B Eaton Bussmann series FWH high speed fuse, 1000 Vac, 800 Vdc, 125A, 200 kAIC at 1000 Vac, 50 kAIC at 500 Vdc, None, High speed fuse, Blade end X blade end, Stud

Eaton Bussmann series FWH high speed fuse, 1000 Vac, 800 Vdc, 125A, 200 kAIC at 1000 Vac, 50 kAIC at 500 Vdc, None, High speed fuse, Blade end X blade end, Stud
  • MPN: FWH-125B
  • UPC: 051712795838
  • PPN: BUS-FWH-125B

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$109.25/ EA

Description

Eaton Bussmann series FWH high speed fuse, 1000 Vac, 800 Vdc, 125A, 200 kAIC at 1000 Vac, 50 kAIC at 500 Vdc, None, High speed fuse, Blade end X blade end, Stud

Specifications

General

UPC
051712795838
Product Length/Depth
91 mm
Product Width
30 mm
Warranty
Not Applicable
Certifications
UL Recognized
EAN5027590020824
Product Height30 mm
Product Weight152 g
CompliancesCE Marked

Specifications

Fuse indicator
None
Construction size
Other
Insulated metal gripping lugs (IMGL)
No
Mounting method
Stud
Utilization category
Other
Type
High speed fuse
Fuse shape
Center bolted tags
Pre arc (I2T)
800
Application
protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Packaging type
Standard
Interrupt rating50 kAIC at 500 Vdc
Clearing (I2T)3500
ConnectionBlade end x blade end
Amperage Rating125 A
Watt losses25 W
Rated switching capacity200 A
Breaking capacity200 A
Voltage rating500 V
Voltage typeAC/DC
