Bussmann

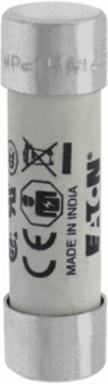

Bussmann FWP-15A14F Eaton Bussmann series FWP high speed fuse, 700 Vac, 800 Vdc (UL), 690 Vac (IEC), 15A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic

Eaton Bussmann series FWP high speed fuse, 700 Vac, 800 Vdc (UL), 690 Vac (IEC), 15A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
  • MPN: FWP-15A14F
  • UPC: 051712795937
  • PPN: BUS-FWP-15A14F

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$40.32/ EA

Description

Eaton Bussmann series FWP high speed fuse, 700 Vac, 800 Vdc (UL), 690 Vac (IEC), 15A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic

Specifications

Specifications

Interrupt rating
200 kAIC at 300 Vdc
Amperage Rating
15 A
Minimum melting
8.6 I2t (A2 sec)
Voltage rating
700 V
Construction size
14 mm x 51 mm
Color
White
Quantity
10
Utilization category
aR (accompanied semiconductor protection)
Type
High speed fuse
Used with
Finger safe holders/blocks and striker
Frequency rating - min
45 Hz
Pre arc (I2T)
10
Voltage type
AC/DC
Release characteristicOther
Frequency rating - max62 Hz
Fuse size14 x 51 mm
Fuse indicatorNon Indicating
Clearing (I2T)70
ConnectionFerrule end x ferrule end
MaterialCeramic
Watt losses5.5 W
Fuse shapeCylindrical
Breaking capacity200 A
ClassClass aR
Applicationprotection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Packaging typeStandard

General

UPC
051712795937
Product Length/Depth
51 mm
Product Width
15 mm
Warranty
Not Applicable
Certifications
UL Recognized
EAN5027590500210
Product Height15 mm
Product Weight20.4 g
CompliancesCE Marked
