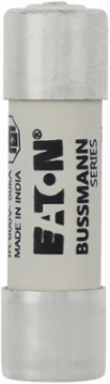

Bussmann FWP-3A14F High Speed Fuse 700V UL 3A Class aR 200 kAIC Ferrule End Ceramic
- MPN: FWP-3A14F
- UPC: 051712795111
- PPN: BUS-FWP-3A14F
CAD
$43.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
High Speed Fuse 700V UL 3A Class aR 200 kAIC Ferrule End Ceramic
Documentation & Downloads
Specifications
Key Specifications
- Interrupt rating
- 200 kAIC at 300 Vdc
- Amperage Rating
- 3 A
- Fuse size
- 14 x 51 mm
- Fuse indicator
- Non Indicating
- Clearing (I2T)
- 0.26
- Connection
- Ferrule end x ferrule end
- Material
- Ceramic
- Watt losses
- 2.8 W
- Fuse shape
- Cylindrical
- Breaking capacity
- 200 A
- Class
- Class aR
- Application
- protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
- Packaging type
- Standard
Release characteristicOther
Frequency rating - max62 Hz
Voltage rating700 V
Construction size14 mm x 51 mm
ColorWhite
Quantity10
Utilization categoryaR (accompanied semiconductor protection)
TypeHigh speed fuse
Used withFinger safe holders/blocks and striker
Frequency rating - min45 Hz
Pre arc (I2T)0.11
Voltage typeAC
General
- UPC
- 051712795111
- Product Length/Depth
- 51 mm
- Product Width
- 15 mm
- Warranty
- Not Applicable
- Certifications
- UL Recognized
EAN5027590500708
Product Height15 mm
Product Weight20.5 g
CompliancesCE Marked
