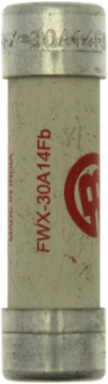

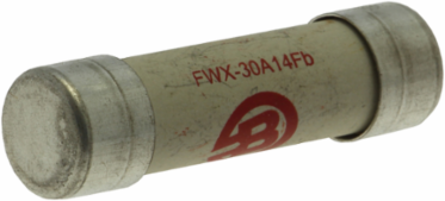

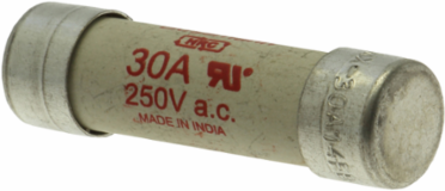

Bussmann FWX-30A14F Eaton Bussmann series high speed cylindrical fuse
Bussmann FWX-30A14F Eaton Bussmann series high speed cylindrical fuse
- MPN: FWX-30A14F
- UPC: 051712795609
- PPN: BUS-FWX-30A14F
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$22.38/ EA
Description
Eaton Bussmann series high speed cylindrical fuse
Specifications
Specifications
- Height
- 14 MM
- Width
- 14 MM
- Type
- Fuse
- Voltage Rating
- 600V
- Amperage Rating
- 30A
- Interrupt Rating
- 200 kAIC Vac, 50 kAIC at 250 Vdc
- Construction Size
- 14 x 51 mm
- Breaking Capacity
- 200 A
- Frequency Rating Maximum
- 62 HZ
- Fuse Shape
- cylindrical
- Pre Arc (I2T)
- 100
- Utilization category
- aR (accompanied semiconductor protection)
- Watt Losses
- 5.9W
Length51 MM
Weight21.4 G
Applicationprotection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters
Voltage Rating Numeric250 V
Amperage Rating Numeric30 A
ConnectionFerrule end X ferrule end
Packaging TypeStandard
Clearing (I2T)Clearing at 250V: 500
Frequency Rating Minimum45 HZ
Fuse IndicatorNon Indicating
Release CharacteristicOther
Voltage TypeAC/DC
With StrikerNo
