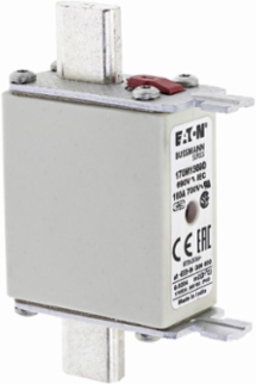

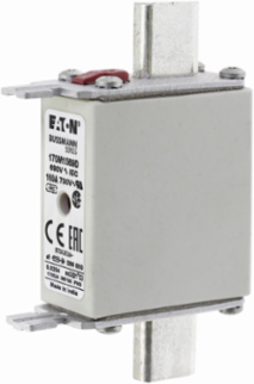

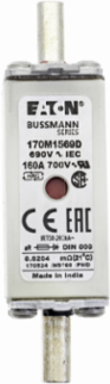

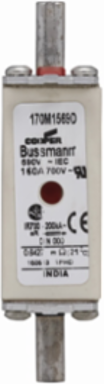

Bussmann 170M1569D High Speed Square Body Fuse 690V 160A 200 kAIC Class aR
- MPN: 170M1569D
- UPC: 051712334907
- PPN: BUS-170M1569D
CAD
$260.43
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
High Speed Square Body Fuse 690V 160A 200 kAIC Class aR
Documentation & Downloads
Specifications
Key Specifications
| Fuse indicator | Combination fuse status indicator |
|---|---|
| Construction size | Other |
| Insulated metal gripping lugs (IMGL) | No |
| Amperage Rating | 160 A |
| Watt losses | 25 W |
| Fuse shape | Square body, knife blade contacts |
| Pre arc (I2T) | 2300 |
| Application | DC common bus, DC drives, power converters/rectifiers, reduced voltage starters |
| Packaging type | Standard |
| Interrupt rating | 200 kAIC |
|---|---|
| Clearing (I2T) | 16500 at 660 V |
| Connection | Din 43-620 blade end x Din 43-620 blade end |
| Utilization category | aR (accompanied semiconductor protection) |
| Type | Fuse |
| Class | Class aR |
| Voltage rating | 690 V |
| Voltage type | AC |
General
| UPC | 051712334907 |
|---|---|
| Product Length/Depth | 79 mm |
| Product Width | 21 mm |
| Warranty | Not Applicable |
| Certifications | UL Recognized |
| EAN | 5027590441360 |
|---|---|
| Product Height | 51 mm |
| Product Weight | 136.2 g |
| Compliances | CE Marked |
