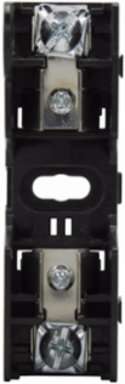

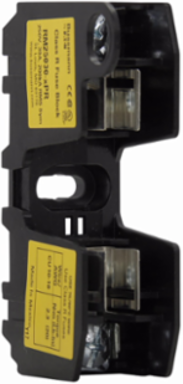

Bussmann HM25030-1PR Modular Fuse Block 250V 0-30A Single-pole 1.85 Inch Height
- MPN: HM25030-1PR
- UPC: 051712512749
- PPN: BUS-HM25030-1PR
CAD
$21.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Boasting a narrow profile with a width dimension optimized for tight layouts, this block maximizes rail capacity in dense sub-panels. It frees up valuable horizontal layout real estate while providing an impressive 10 kAIC short-circuit withstand rating to keep your equipment footprint minimized and compliant.
Features
- Featuring an innovative interlocking snap-together footprint, this single-pole block simplifies multi-phase grouping directly at the point of use.
- Outfitted with a versatile dual-mounting base layout, this block snaps directly onto standard 35mm DIN rails or screws flat against an enclosure backpan. This dual-use configuration allows industrial engineers to streamline their bill of materials by utilizing a single block part number across diverse enclosure layouts.
Documentation & Downloads
Specifications
Additional
| Voltage | 250 V |
|---|---|
| Short-Circuit Rating | 10 kA |
| Height | 1.85 in |
| Width | 0.95 in |
| Class | Class H, K |
| Certifications | UL Listed, CSA Certified |
| Amperage | 0-30A |
|---|---|
| Number of Poles | Single-pole |
| Length/Depth | 3.15 in |
| Weight | 0.8 lb |
| Compliance | RoHS Compliant |
